New Standard Pro Bottom Tool Holder
  • Clamping Type = Pneumatic
  • Adaption = UPB hole pattern
  • Horizontal Alignment (Tx)

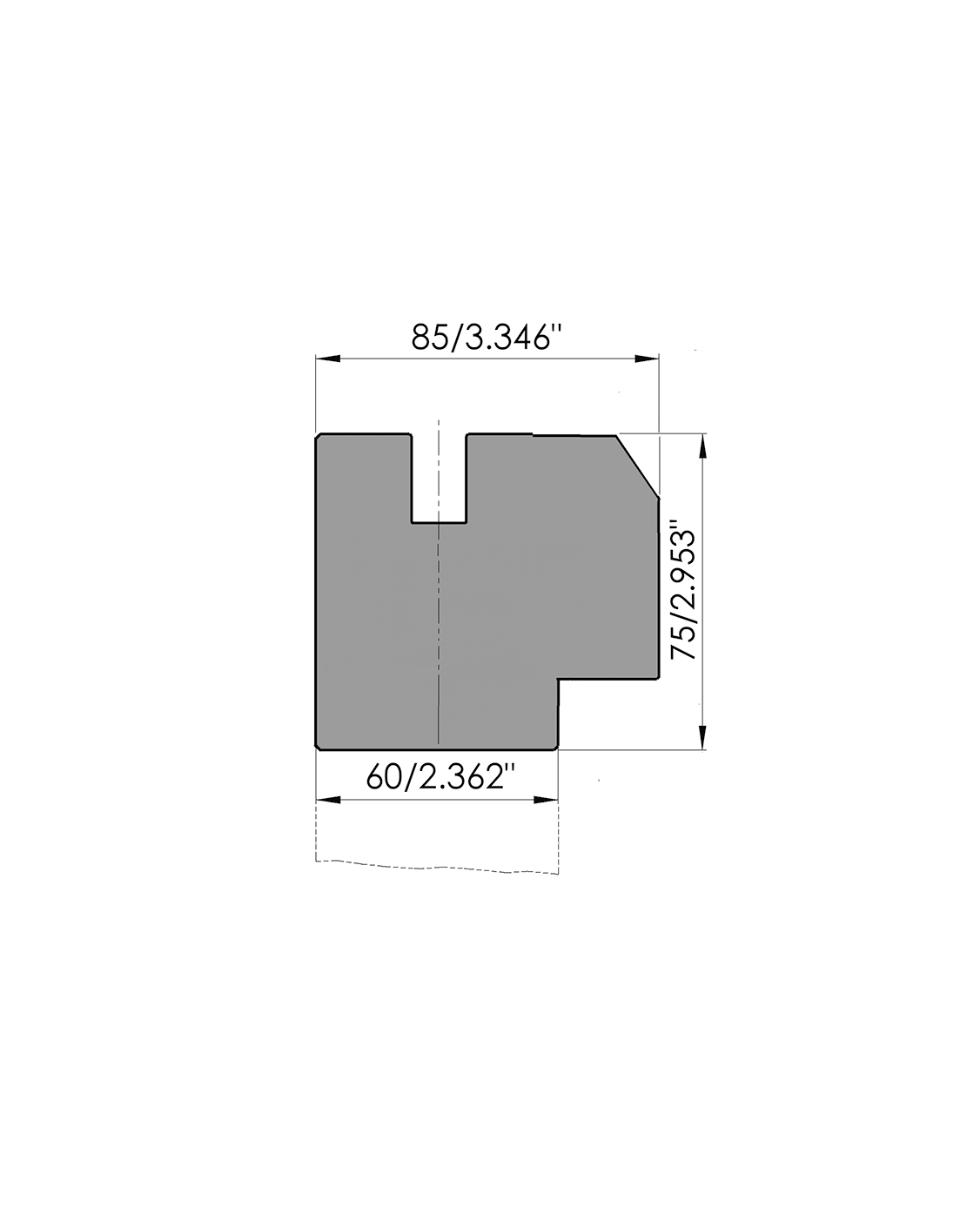

  • Working height H = 75mm
  • Width W = 85mm
  • Max. load = 200ton/m
OB-I-SL/UPB-1190 43.4kg / 95.8lbs
OB-I-SL/UPB-1275 46.5kg / 102.6lbs
OB-I-SL/UPB-1530 55.8kg / 123.1lbs
OB-I-SL/UPB-2040 74.5kg / 164.2lbs
OB-I-SL/UPB-2380 86.9kg / 191.5lbs
OB-I-SL/UPB-2550 93.1kg / 205.2lbs
OB-I-SL/UPB-3060 111.7kg / 246.2lbs
OB-I-SL/UPB-3655 133.4kg / 294.1lbs
OB-I-SL/UPB-4080 148.9kg / 328.3lbs
OB-I-SL/UPB-4250 155.1kg / 342.0lbs

Description

New Standard Pro Custom Style bottom tool holder with V-lock®.,
Working height=75mm, Width=85mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, pneumatic clamping, Tx-alignment, Material=C45 not hardened, weight: 36.5kg/m, max.load: 200ton/m.
