OZU-015

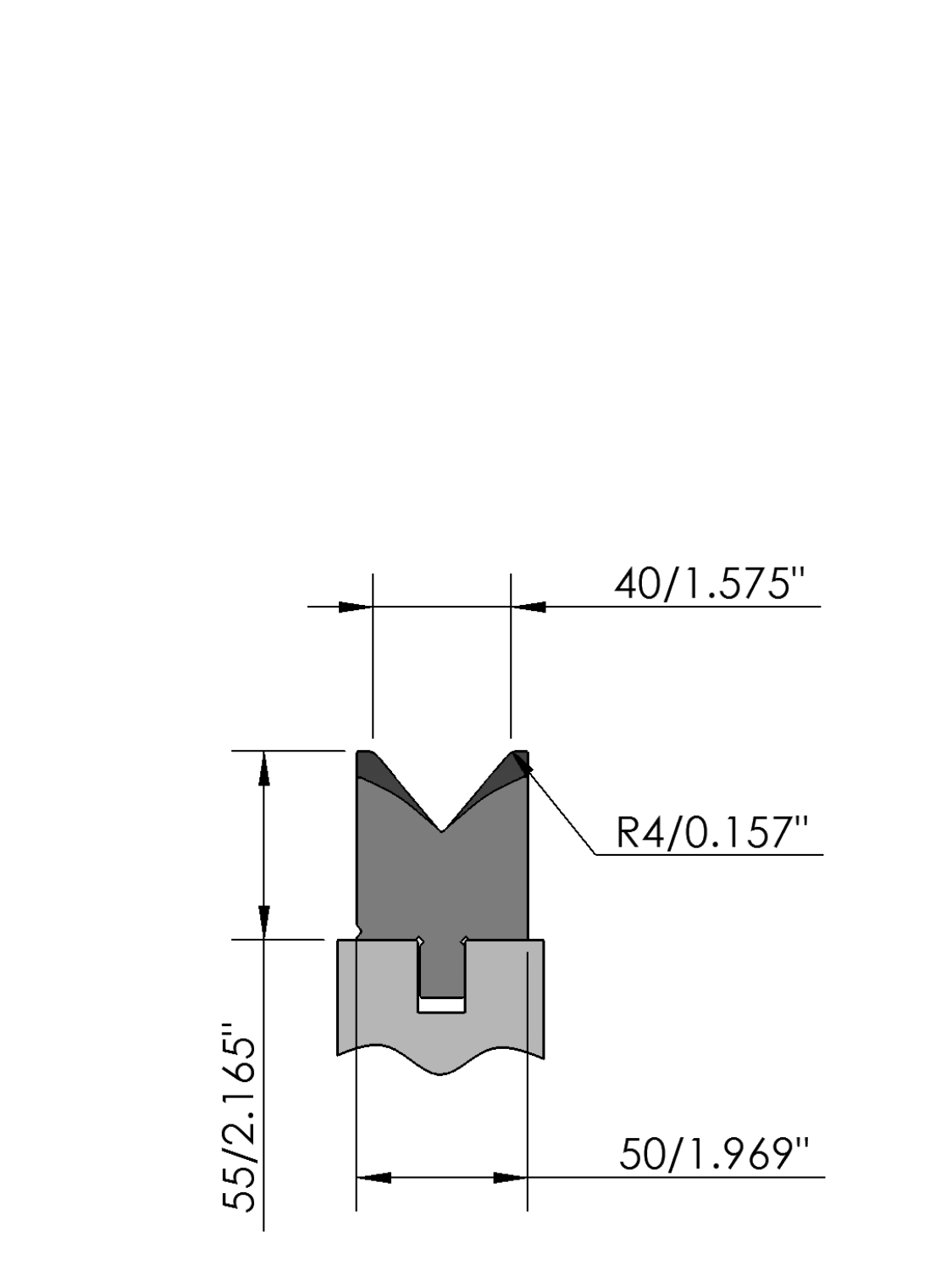

New Standard Premium Bottom Tool

Working height = 55mm
V-opening = 40mm/80°
Radius = 4mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 125ton/m (α = 90°)
Max. load = 125ton/m (α = 90°)

Log into the WILA webshop


OZU-015/1 515mm		10.0kg / 22.1lbs
OZU-015/2 550mm (segmented)		10.7kg / 23.6lbs
OZU-015/3 200mm (segmented)		3.9kg / 8.6lbs
OZU-015/12 255mm		5.0kg / 11.0lbs
OZU-015 1x:20mm		0.4kg / 0.9lbs
OZU-015 1x:25mm		0.5kg / 1.1lbs

Description

New Standard Premium bottom tool Working height=55mm, V-opening=40mm/80°, Bending radius=4mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).
