OZU-052

OZU-052

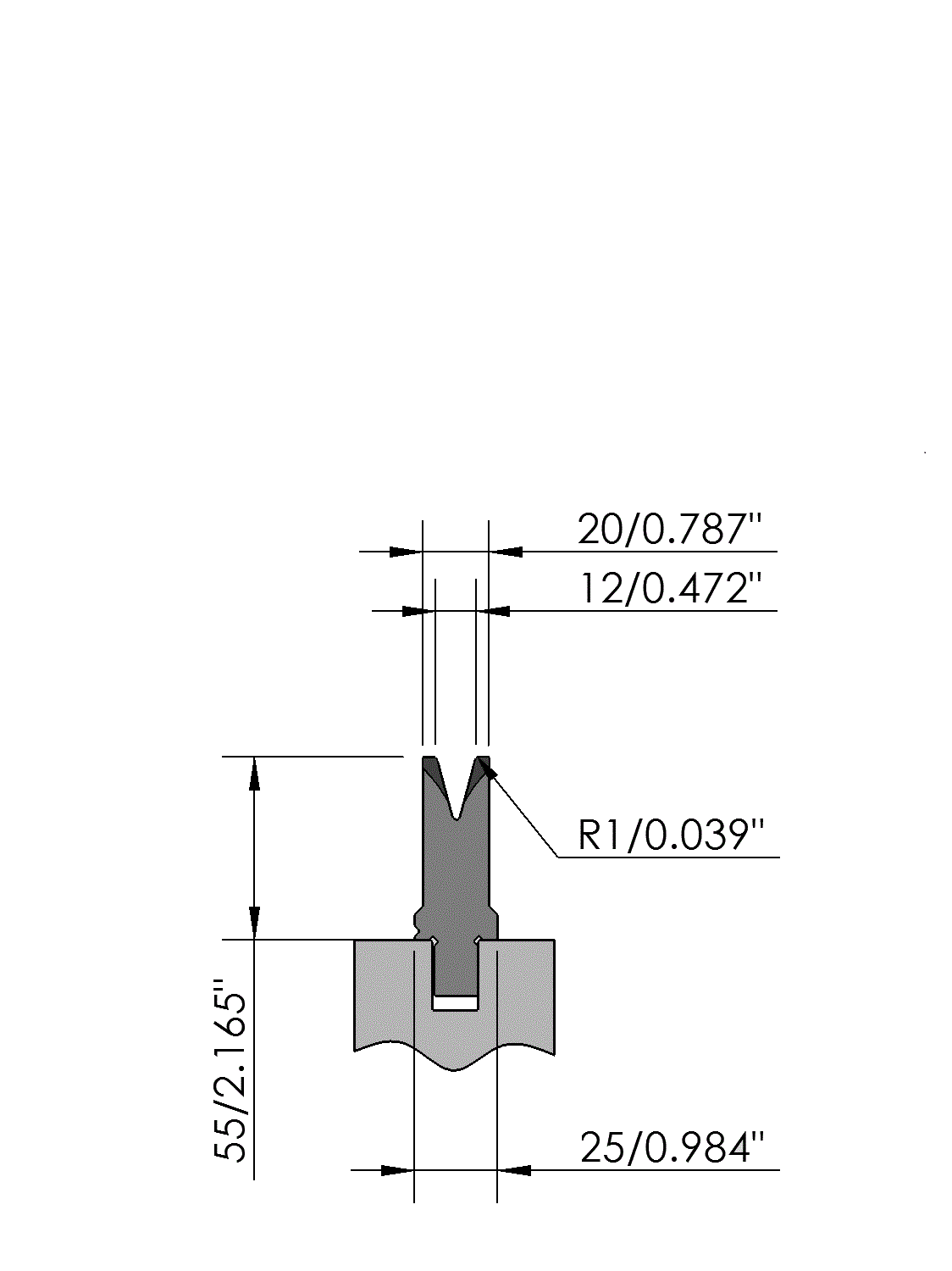

New Standard Premium Bottom Tool
  • Working height = 55mm
  • V-opening = 12mm/30°
  • Radius = 1mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 80ton/m (α = 90°)
  • Max. load = 80ton/m (α = 90°)
OZU-052/1 515mm
277030
4.9kg / 10.9lbs
OZU-052/2 550mm (segmented)
277031
5.3kg / 11.6lbs
OZU-052/3 200mm (segmented)
277032
1.9kg / 4.2lbs
OZU-052/12 255mm
377688
2.4kg / 5.4lbs
OZU-EB-052/1 515mm
406906
4.9kg / 10.9lbs
OZU-EB-052/2 550mm (segmented)
407057
5.3kg / 11.6lbs
OZU-EB-052/3 200mm (segmented)
407058
1.9kg / 4.2lbs
OZU-EB-052/12 255mm
407635
2.4kg / 5.4lbs
OZU-ZN-052/1 515mm
357768
4.9kg / 10.9lbs
OZU-ZN-052/2 550mm (segmented)
355913
5.3kg / 11.6lbs

Description

New Standard Premium bottom tool Working height=55mm, V-opening=12mm/30°, Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
