OZU-061

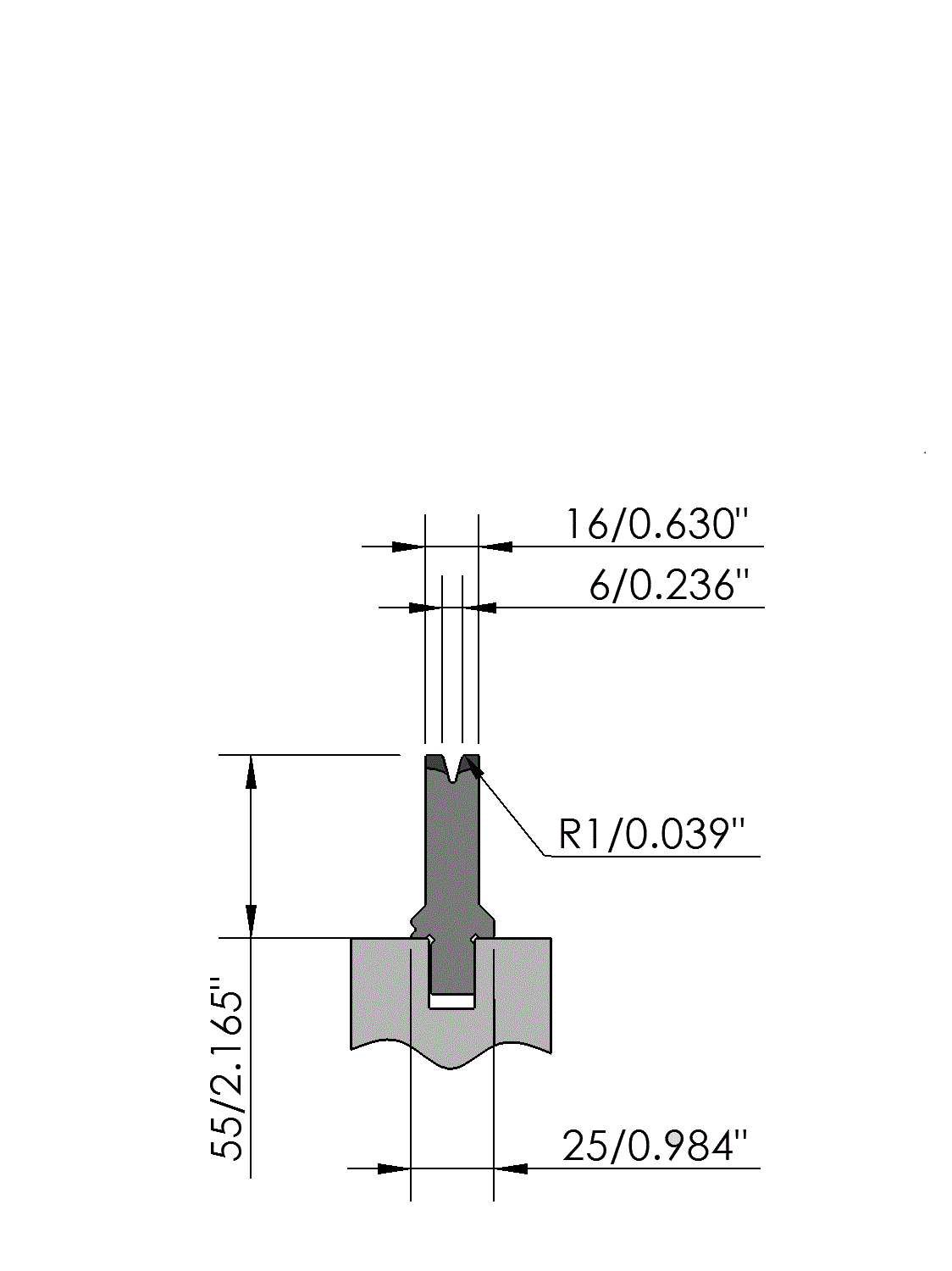

New Standard Premium Bottom Tool

Working height = 55mm
V-opening = 6mm/30°
Radius = 1mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 80ton/m (α = 90°)
Max. load = 80ton/m (α = 90°)

Log into the WILA webshop


OZU-061/1 515mm		4.5kg / 10.0lbs
OZU-061/2 550mm (segmented)		4.8kg / 10.7lbs
OZU-061/3 200mm (segmented)		1.8kg / 3.9lbs
OZU-061/12 255mm		2.2kg / 4.9lbs
OZU-EB-061/1 515mm		4.9kg / 10.8lbs
OZU-EB-061/2 550mm (segmented)		5.2kg / 11.5lbs
OZU-EB-061/3 200mm (segmented)		1.9kg / 4.2lbs
OZU-EB-061/12 255mm		2.2kg / 4.9lbs
OZU-061 1x:20mm		0.2kg / 0.4lbs
OZU-061 1x:25mm		0.2kg / 0.5lbs

Description

New Standard Premium bottom tool Working height=55mm, V-opening=6mm/30°, Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).
