OZU-083

OZU-083

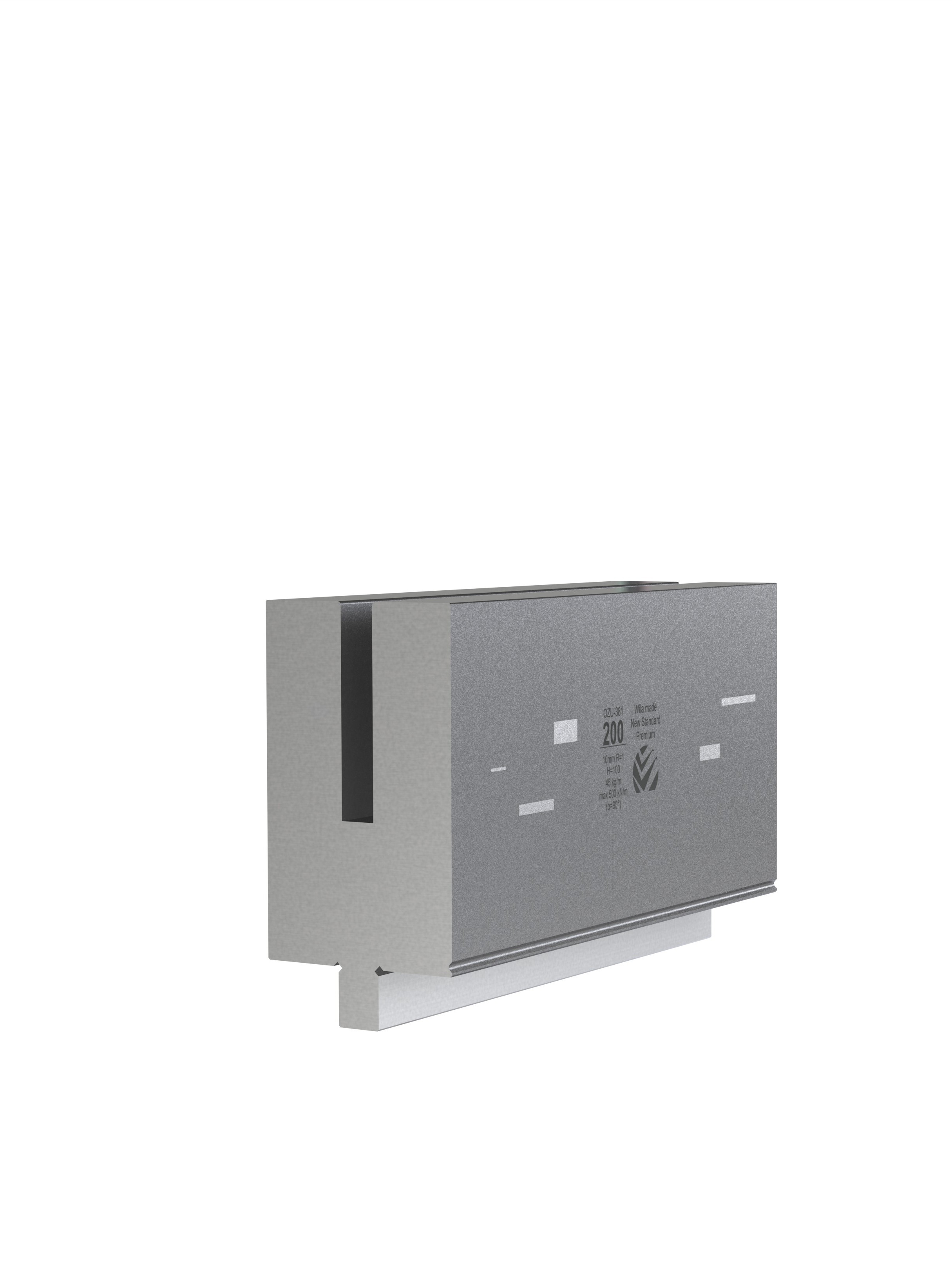

New Standard Premium Bottom Tool

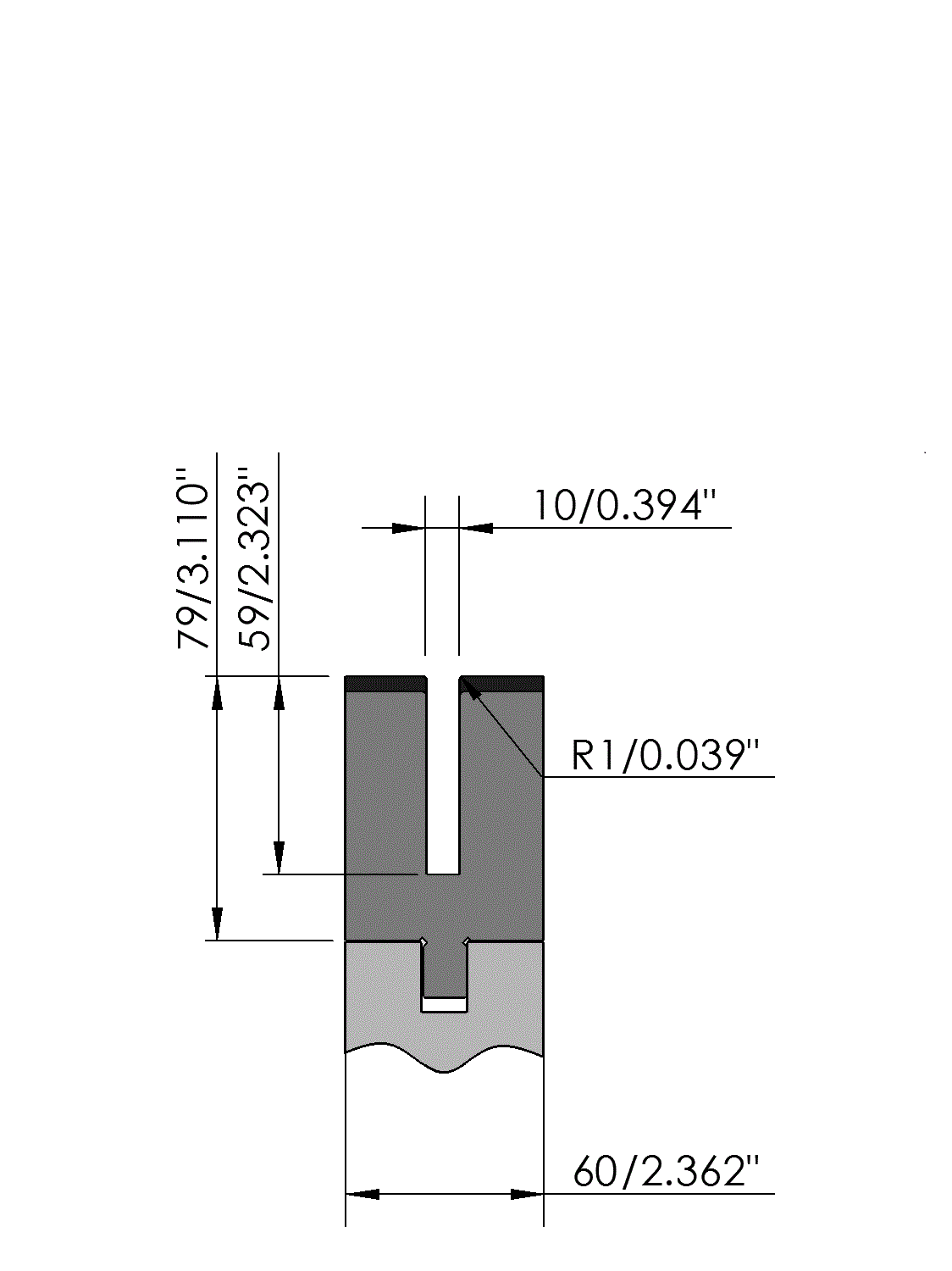

  • Working height = 79mm
  • U-opening = 10x59mm
  • Radius = 1mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 50ton/m (α = 90°)
OZU-083/1 515mm
277083
18.0kg / 39.7lbs
OZU-083/2 550mm (segmented)
340143
19.3kg / 42.4lbs
OZU-083/12 255mm
377748
8.9kg / 19.7lbs
OZU-083/6 200mm
277084
7.0kg / 15.4lbs

Description

New Standard Premium bottom tool Working height=79mm, U-opening=10x59mm (BxD), Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=50ton/m (α=90°).

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
