OZU-313

OZU-313

New Standard Premium Bottom Tool
  • Working height = 100mm
  • V-opening = 24mm/80°
  • Radius = 5mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 125ton/m (α = 90°)
  • Max. load = 125ton/m (α = 90°)
Log into the WILA webshop
OZU-313/1 515mm
277106
14.3kg / 31.5lbs
OZU-313/2 550mm (segmented)
277107
15.2kg / 33.6lbs
OZU-313/3 200mm (segmented)
277108
5.5kg / 12.2lbs
OZU-313/12 255mm
377713
7.1kg / 15.6lbs
OZU-EB-313/1 515mm
406920
14.3kg / 31.5lbs
OZU-EB-313/2 550mm (segmented)
407286
14.6kg / 32.1lbs
OZU-EB-313/3 200mm (segmented)
407287
5.3kg / 11.7lbs
OZU-EB-313/12 255mm
407660
7.1kg / 15.6lbs
OZU-ZN-313/1 515mm
357818
14.3kg / 31.5lbs
OZU-ZN-313/2 550mm (segmented)
357819
14.6kg / 32.1lbs

Description

New Standard Premium bottom tool Working height=100mm, V-opening=24mm/80°, Bending radius=5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).

Open in WILA Smart Tooling App

View all information available in the Smart Tooling app

More about the WILA Smart Tooling App

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.

Downloads

Outlinedrawing OZU-313 (DXF)
New Standard Premium

Related products

OZU-317
Orderable

OZU-317

New Standard Premium
Working height H = 100mm
V-opening = 80mm/80°
Radius = 16mm
Max. load =50 tons/ft (α=90°)
Max. load = 150 ton/m (α=90°)

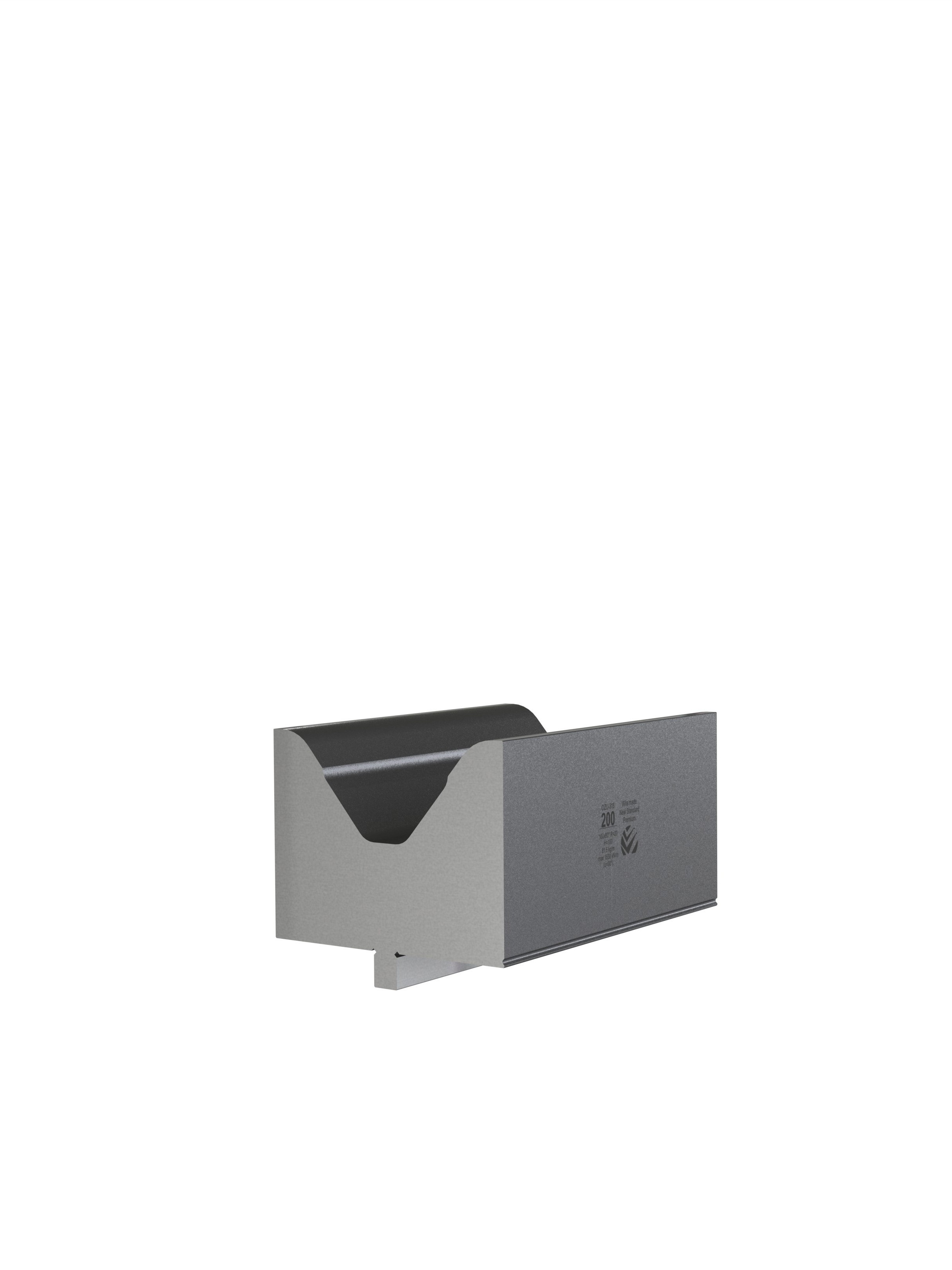

OZU-318
Orderable

OZU-318

New Standard Premium
Working height H = 100mm
V-opening = 100mm/80°
Radius = 20mm
Max. load =50 tons/ft (α=90°)
Max. load = 150 ton/m (α=90°)

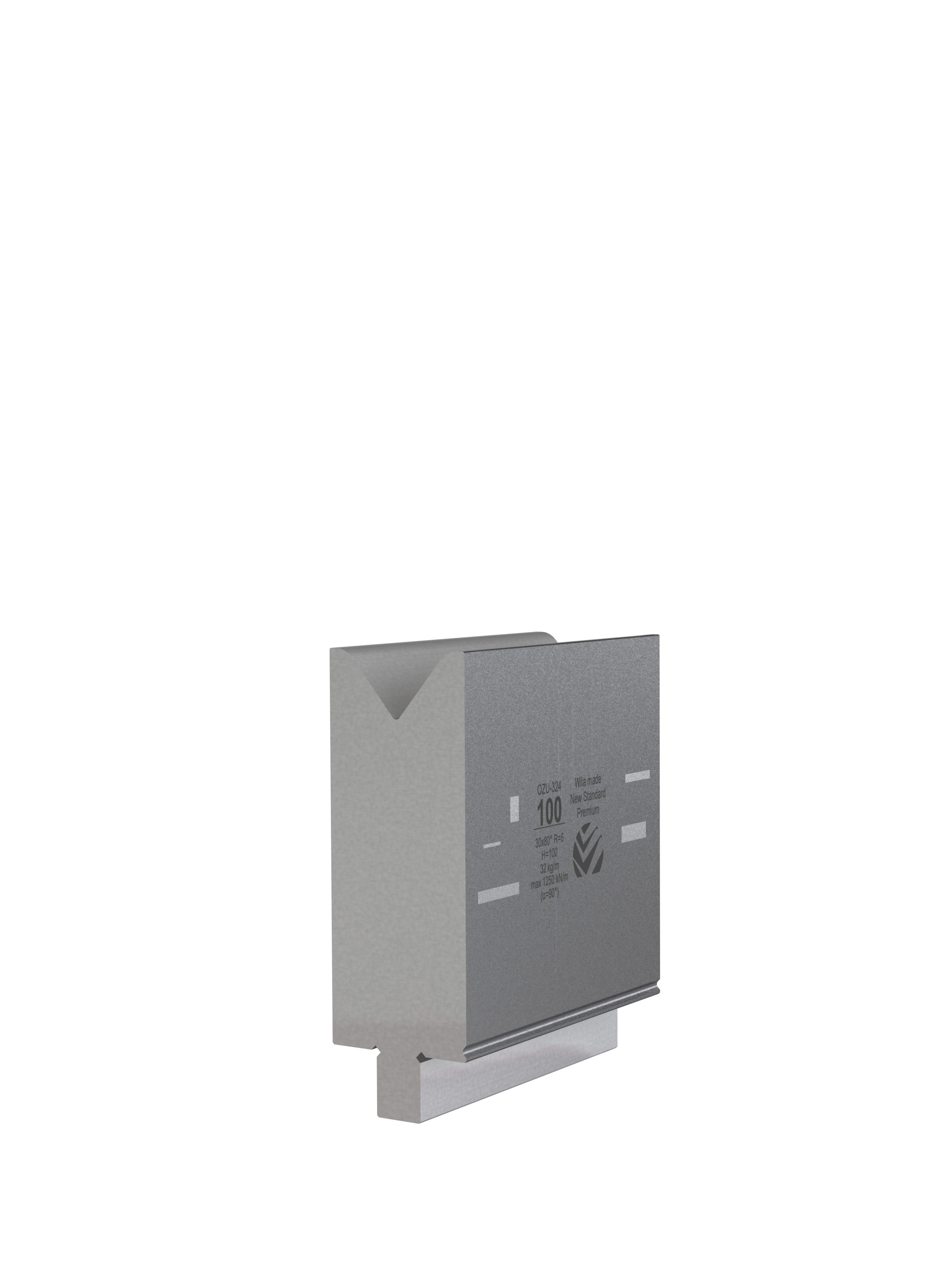

OZU-324
Orderable

OZU-324

New Standard Premium
Working height H = 100mm
V-opening = 30mm/80°
Radius = 6mm
Max. load =42 tons/ft (α=90°)
Max. load = 125 ton/m (α=90°)

OZU-325
Orderable

OZU-325

New Standard Premium
Working height H = 100mm
V-opening = 40mm/80°
Radius = 8mm
Max. load =42 tons/ft (α=90°)
Max. load = 125 ton/m (α=90°)

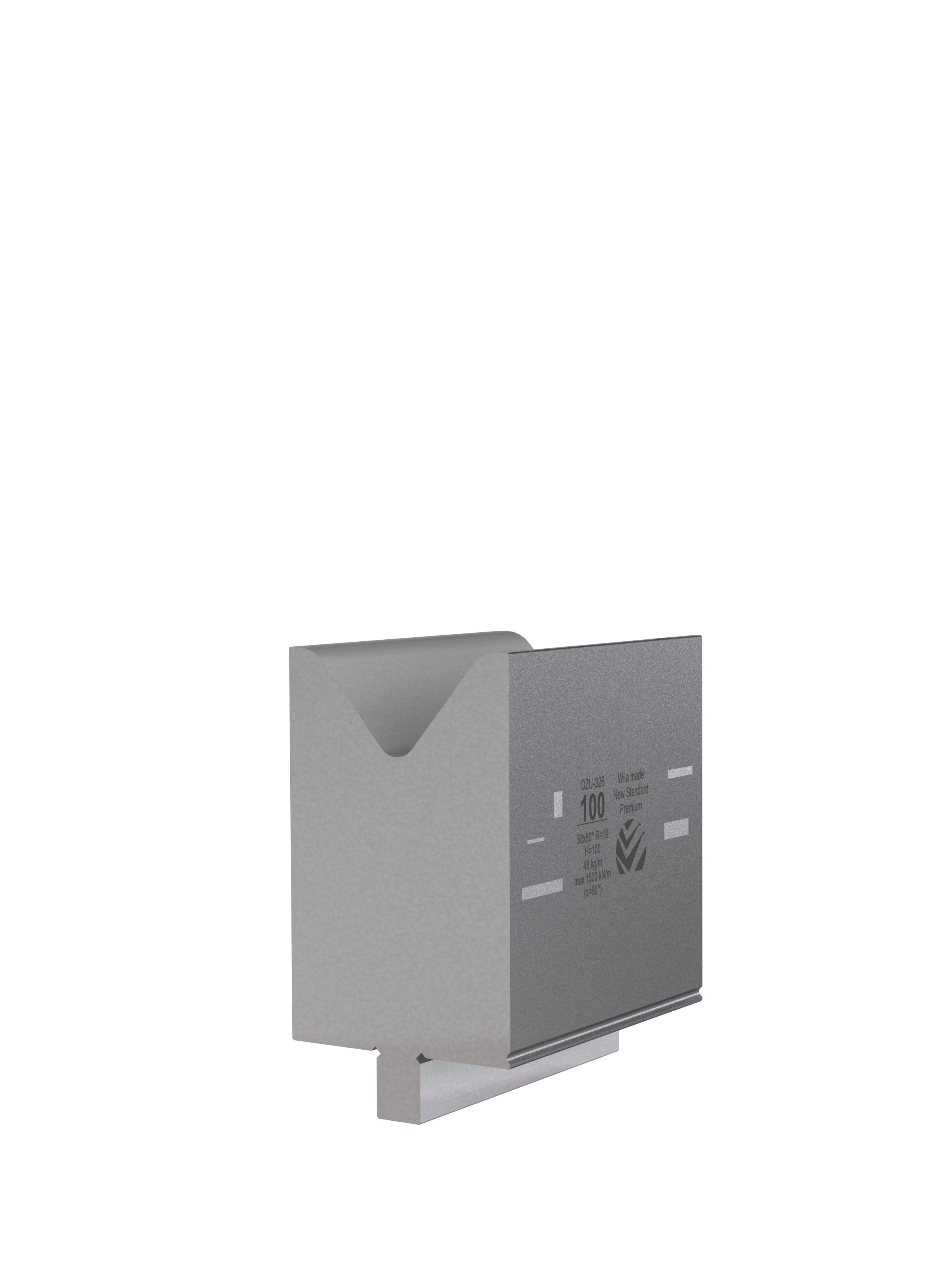

OZU-326
Orderable

OZU-326

New Standard Premium
Working height H = 100mm
V-opening = 50mm/80°
Radius = 10mm
Max. load =50 tons/ft (α=90°)
Max. load = 150 ton/m (α=90°)

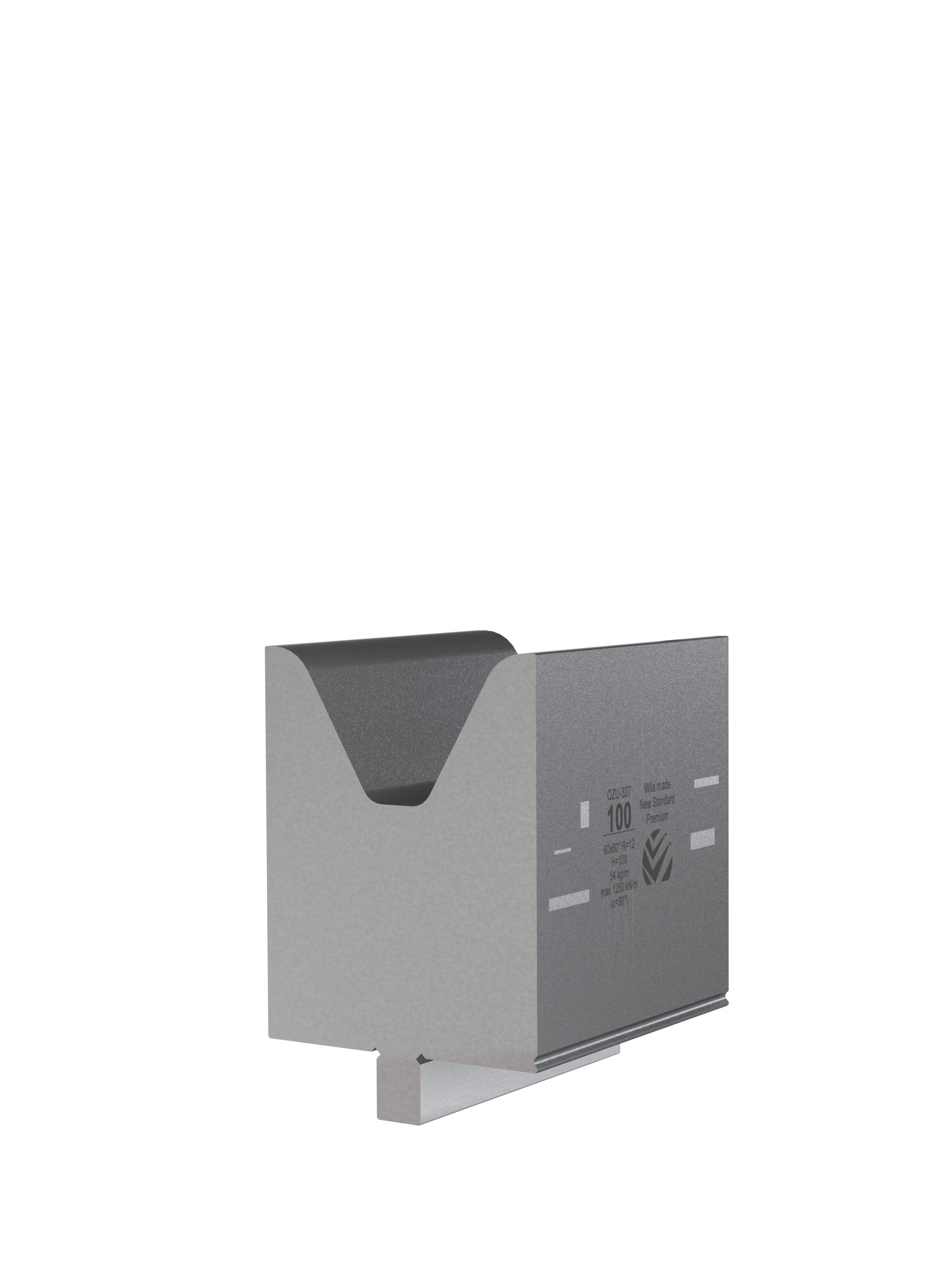

OZU-327
