OZU-318

OZU-318

New Standard Premium Bottom Tool

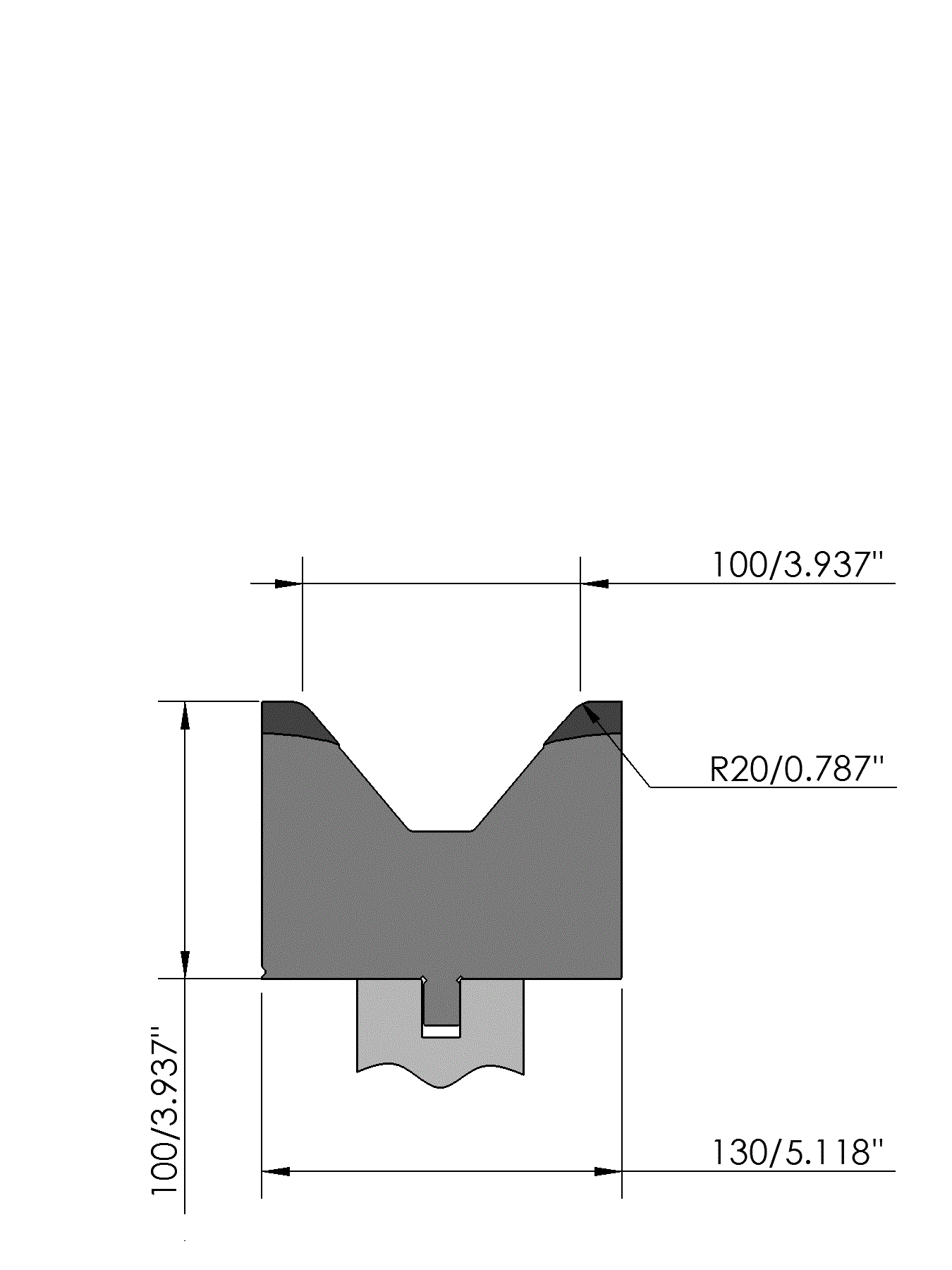

  • Working height = 100mm
  • V-opening = 100mm/80°
  • Radius = 20mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 150ton/m (α = 90°)
  • Max. load = 150ton/m (α = 90°)
Log into the WILA webshop
OZU-318/1 515mm
277131
40.2kg / 88.6lbs
OZU-318/12 255mm
367182
19.9kg / 43.8lbs
OZU-E2M-318/1 515mm
356945
E2M® 40.1kg / 88.4lbs
OZU-E2M-318/12 255mm
367183
E2M® 19.9kg / 44.0lbs

Description

New Standard Premium bottom tool Working height=100mm, V-opening=100mm/80°, Bending radius=20mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=150ton/m (α=90°), Max. load=150ton/m (α=90°).

Open in WILA Smart Tooling App

View all information available in the Smart Tooling app

More about the WILA Smart Tooling App

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.

Downloads

Outlinedrawing OZU-318 (DXF)
New Standard Premium
