OZU-321

OZU-321

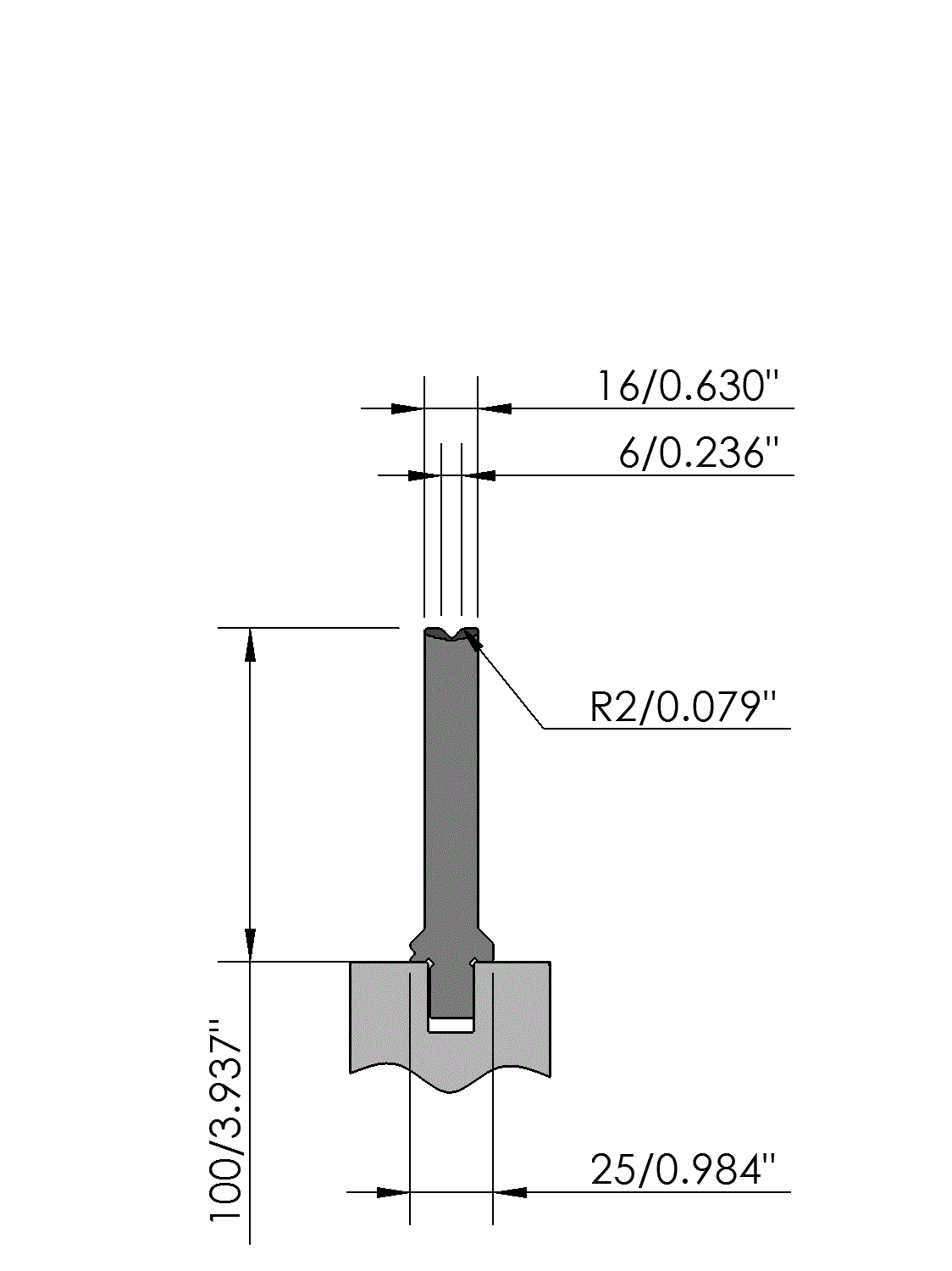

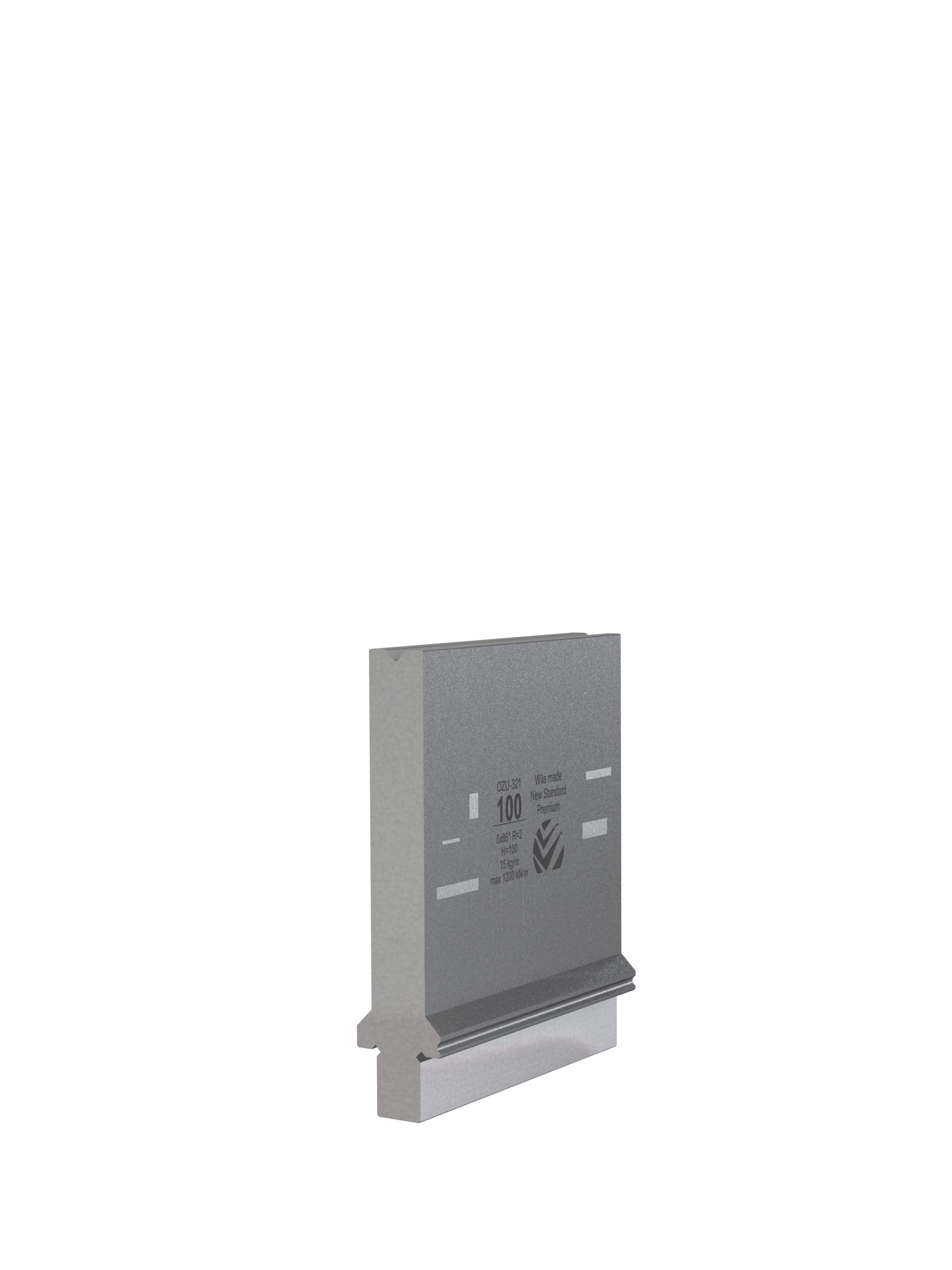

New Standard Premium Bottom Tool
  • Working height = 100mm
  • V-opening = 6mm/86°
  • Radius = 2mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 120ton/m
  • Max. load = 120ton/m (α = 90°)
OZU-321/1 515mm
277134
7.6kg / 16.7lbs
OZU-321/2 550mm (segmented)
277135
8.1kg / 17.8lbs
OZU-321/3 200mm (segmented)
277136
2.9kg / 6.5lbs
OZU-321/12 255mm
377726
3.7kg / 8.2lbs
OZU-EB-321/1 515mm
406922
12.8kg / 28.3lbs
OZU-EB-321/2 550mm (segmented)
407288
8.0kg / 17.7lbs
OZU-EB-321/3 200mm (segmented)
407289
3.0kg / 6.6lbs
OZU-EB-321/12 255mm
407662
3.7kg / 8.2lbs
OZU-ZN-321/1 515mm
357847
12.8kg / 28.3lbs
OZU-ZN-321/2 550mm (segmented)
357848
8.0kg / 17.7lbs

Description

New Standard Premium bottom tool Working height=100mm, V-opening=6mm/86°, Bending radius=2mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO
Max. load=120ton/m, Max. load=120ton/m (α=90°).

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
