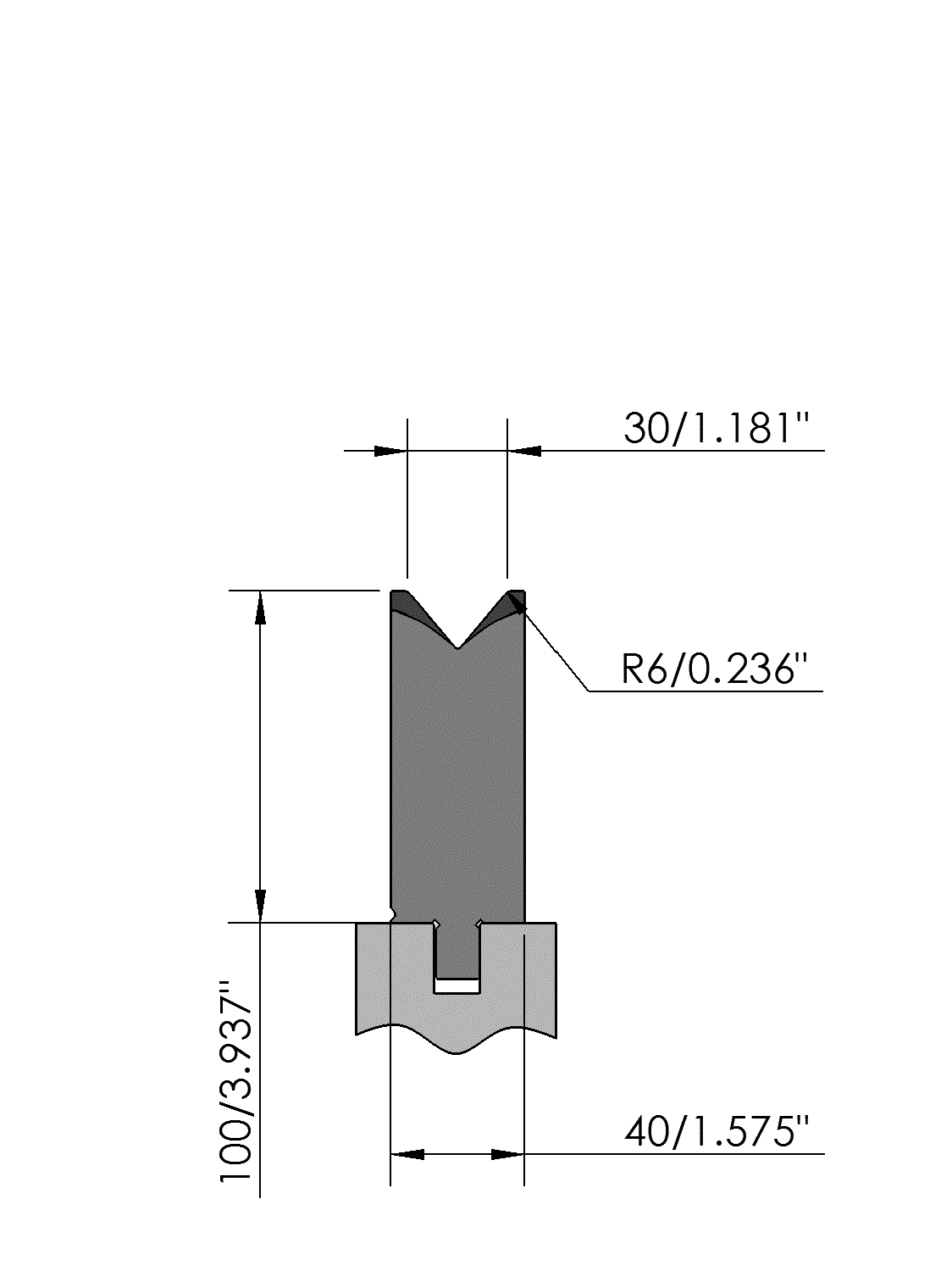

OZU-324

OZU-324

New Standard Premium Bottom Tool
  • Working height = 100mm
  • V-opening = 30mm/80°
  • Radius = 6mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 125ton/m (α = 90°)
  • Max. load = 125ton/m (α = 90°)
Log into the WILA webshop
OZU-324/1 515mm
277152
15.9kg / 35.1lbs
OZU-324/2 550mm (segmented)
277153
17.0kg / 37.5lbs
OZU-324/3 200mm (segmented)
277154
6.2kg / 13.6lbs
OZU-324/12 255mm
377714
7.9kg / 17.4lbs
OZU-EB-324/1 515mm
406933
15.9kg / 35.1lbs
OZU-EB-324/2 550mm (segmented)
407295
17.0kg / 37.5lbs
OZU-EB-324/3 200mm (segmented)
407297
6.2kg / 13.6lbs
OZU-EB-324/12 255mm
407665
7.9kg / 17.4lbs
OZU-E2M-324/1 515mm
356940
E2M® 15.9kg / 35.1lbs
OZU-324 1x:20mm
360550
0.6kg / 1.4lbs

Description

New Standard Premium bottom tool Working height=100mm, V-opening=30mm/80°, Bending radius=6mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).

Open in WILA Smart Tooling App

View all information available in the Smart Tooling app

More about the WILA Smart Tooling App

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.

Downloads

Outlinedrawing OZU-324 (DXF)
New Standard Premium
