OZU-325

OZU-325

New Standard Premium Bottom Tool

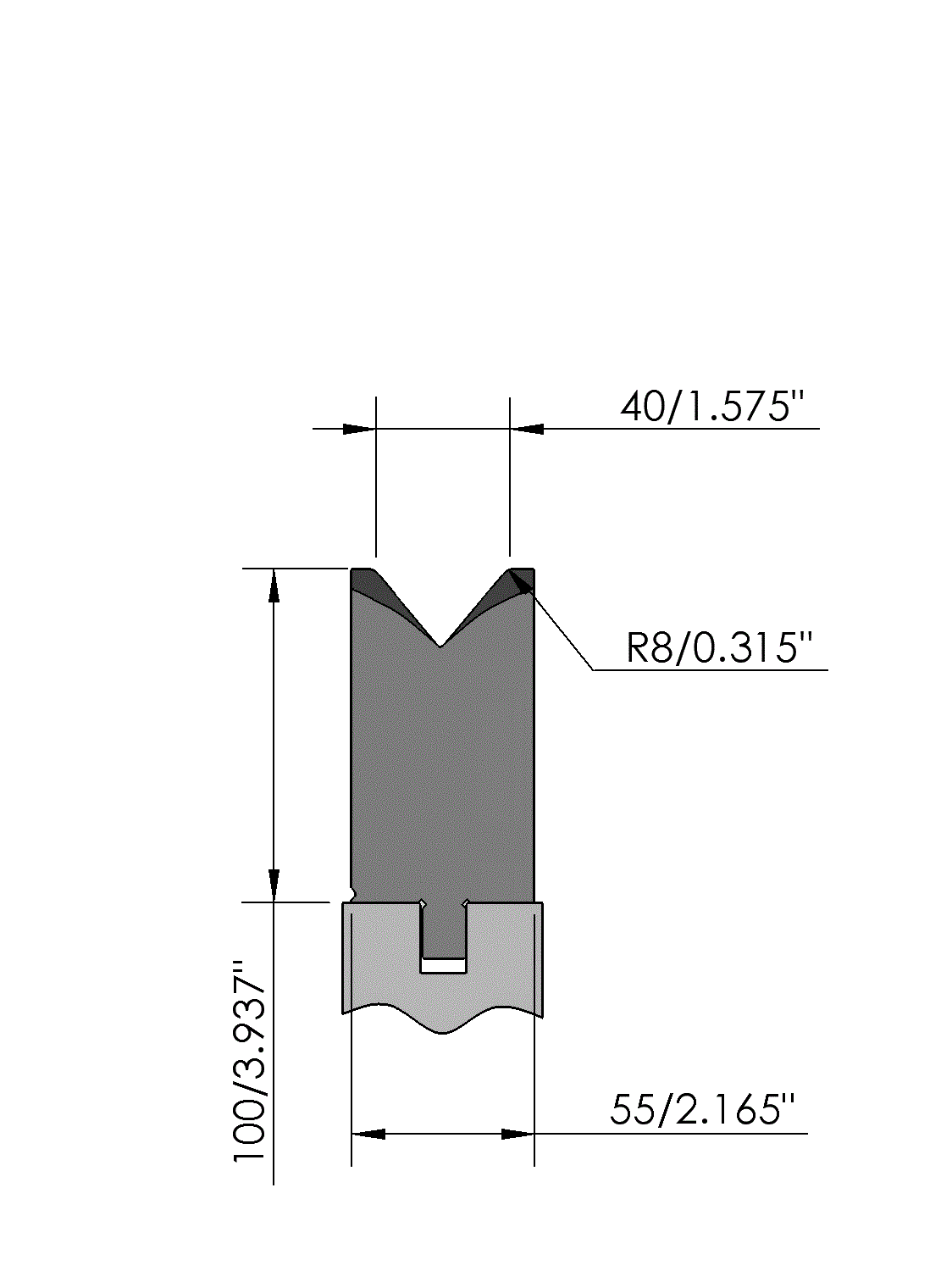

  • Working height = 100mm
  • V-opening = 40mm/80°
  • Radius = 8mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 125ton/m (α = 90°)
  • Max. load = 125ton/m (α = 90°)
Log into the WILA webshop
OZU-325/1 515mm
277158
21.1kg / 46.6lbs
OZU-325/2 550mm (segmented)
277159
22.6kg / 49.7lbs
OZU-325/3 200mm (segmented)
277160
8.2kg / 18.1lbs
OZU-325/12 255mm
377715
10.5kg / 23.0lbs
OZU-E2M-325/1 515mm
356941
E2M® 21.1kg / 46.6lbs
OZU-325 1x:20mm
351472
0.8kg / 1.8lbs

Description

New Standard Premium bottom tool Working height=100mm, V-opening=40mm/80°, Bending radius=8mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).

Open in WILA Smart Tooling App

View all information available in the Smart Tooling app

More about the WILA Smart Tooling App

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.

Downloads

Outlinedrawing OZU-325 (DXF)
New Standard Premium
