OZU-326

OZU-326

New Standard Premium Bottom Tool

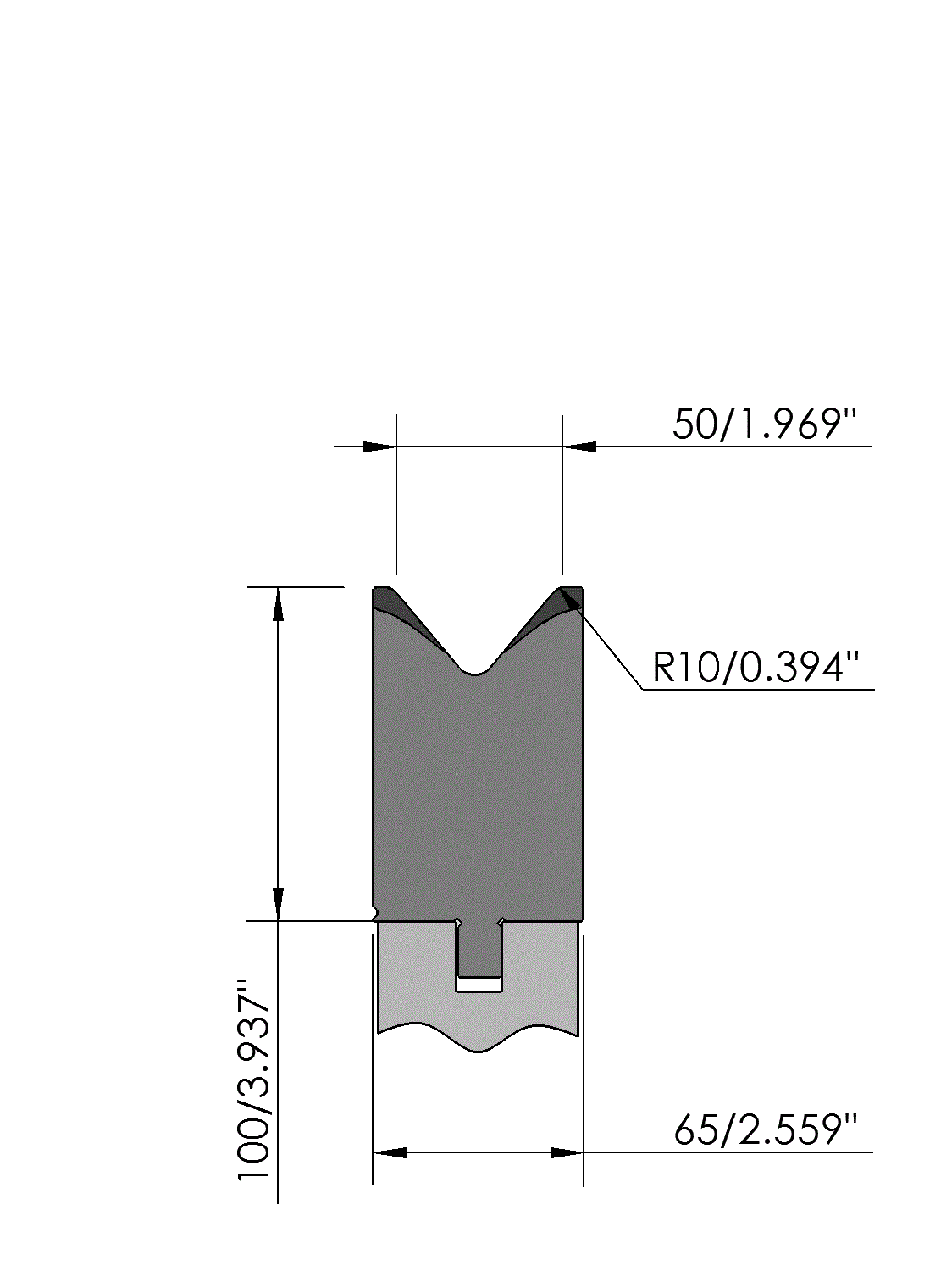

  • Working height = 100mm
  • V-opening = 50mm/80°
  • Radius = 10mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 150ton/m (α = 90°)
  • Max. load = 150ton/m (α = 90°)
Log into the WILA webshop
OZU-326/1 515mm
277164
24.1kg / 53.1lbs
OZU-326/2 550mm (segmented)
277165
25.7kg / 56.7lbs
OZU-326/3 200mm (segmented)
277166
9.4kg / 20.6lbs
OZU-326/12 255mm
377716
11.9kg / 26.3lbs
OZU-E2M-326/1 515mm
356942
E2M® 24.1kg / 53.1lbs
OZU-326 1x:20mm
360553
0.9kg / 2.1lbs

Description

New Standard Premium bottom tool Working height=100mm, V-opening=50mm/80°, Bending radius=10mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=150ton/m (α=90°), Max. load=150ton/m (α=90°).

Open in WILA Smart Tooling App

View all information available in the Smart Tooling app

More about the WILA Smart Tooling App

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.

Downloads

Outlinedrawing OZU-326 (DXF)
New Standard Premium
