OZU-327

OZU-327

New Standard Premium Bottom Tool

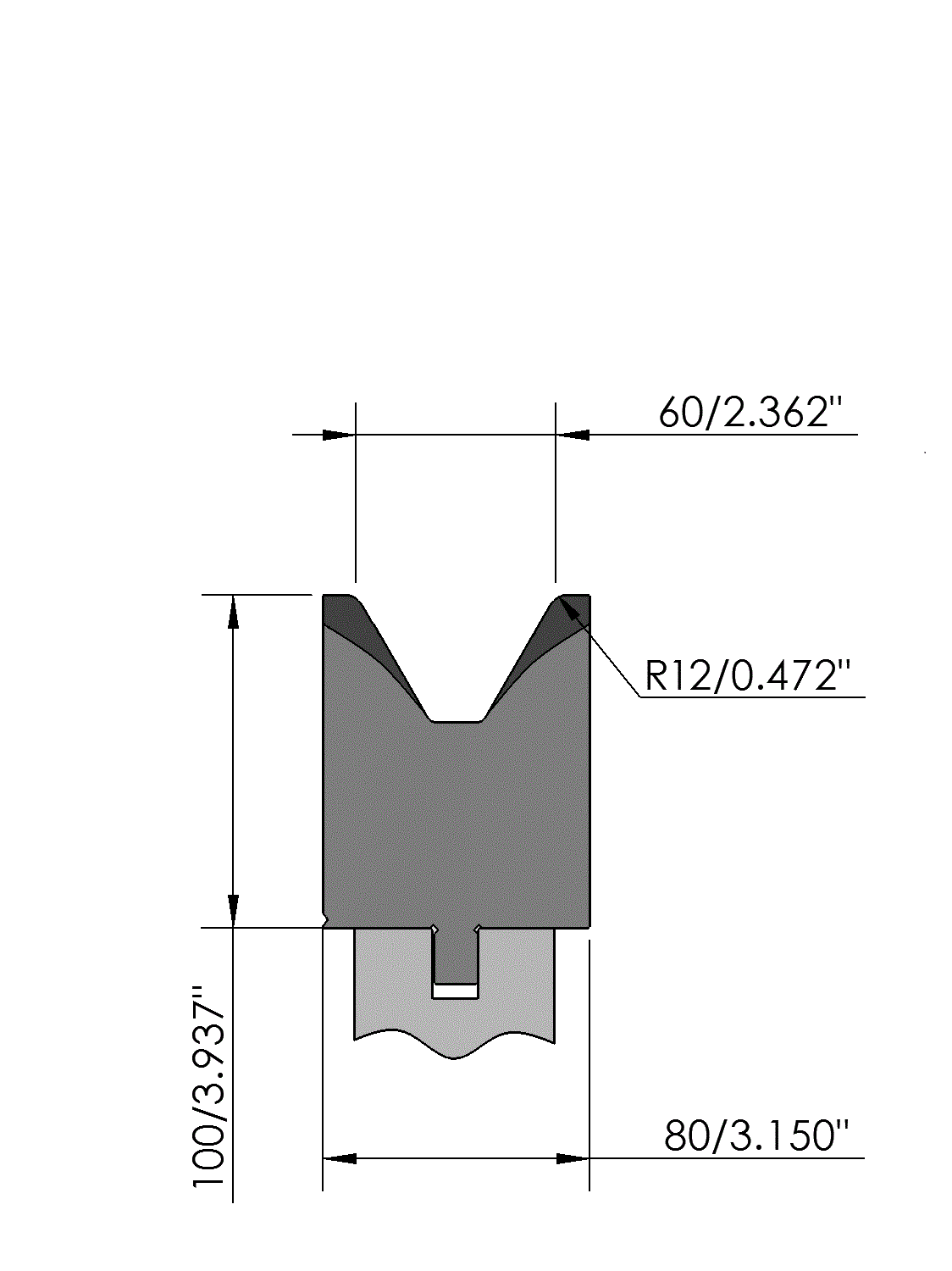

  • Working height = 100mm
  • V-opening = 60mm/60°
  • Radius = 12mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 125ton/m (α = 90°)
  • Max. load = 125ton/m (α = 90°)
Log into the WILA webshop
OZU-327/1 515mm
277169
27.2kg / 59.9lbs
OZU-327/2 550mm (segmented)
277170
29.0kg / 64.0lbs
OZU-327/3 200mm (segmented)
277171
10.6kg / 23.3lbs
OZU-327/12 255mm
377708
13.5kg / 29.7lbs
OZU-E2M-327/1 515mm
356927
E2M® 27.2kg / 59.9lbs
OZU-327 1x:20mm
363383
1.1kg / 2.3lbs

Description

New Standard Premium bottom tool Working height=100mm, V-opening=60mm/60°, Bending radius=12mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=125ton/m (α=90°), Max. load=125ton/m (α=90°).

Open in WILA Smart Tooling App

View all information available in the Smart Tooling app

More about the WILA Smart Tooling App

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.

Downloads

Outlinedrawing OZU-327 (DXF)
New Standard Premium
