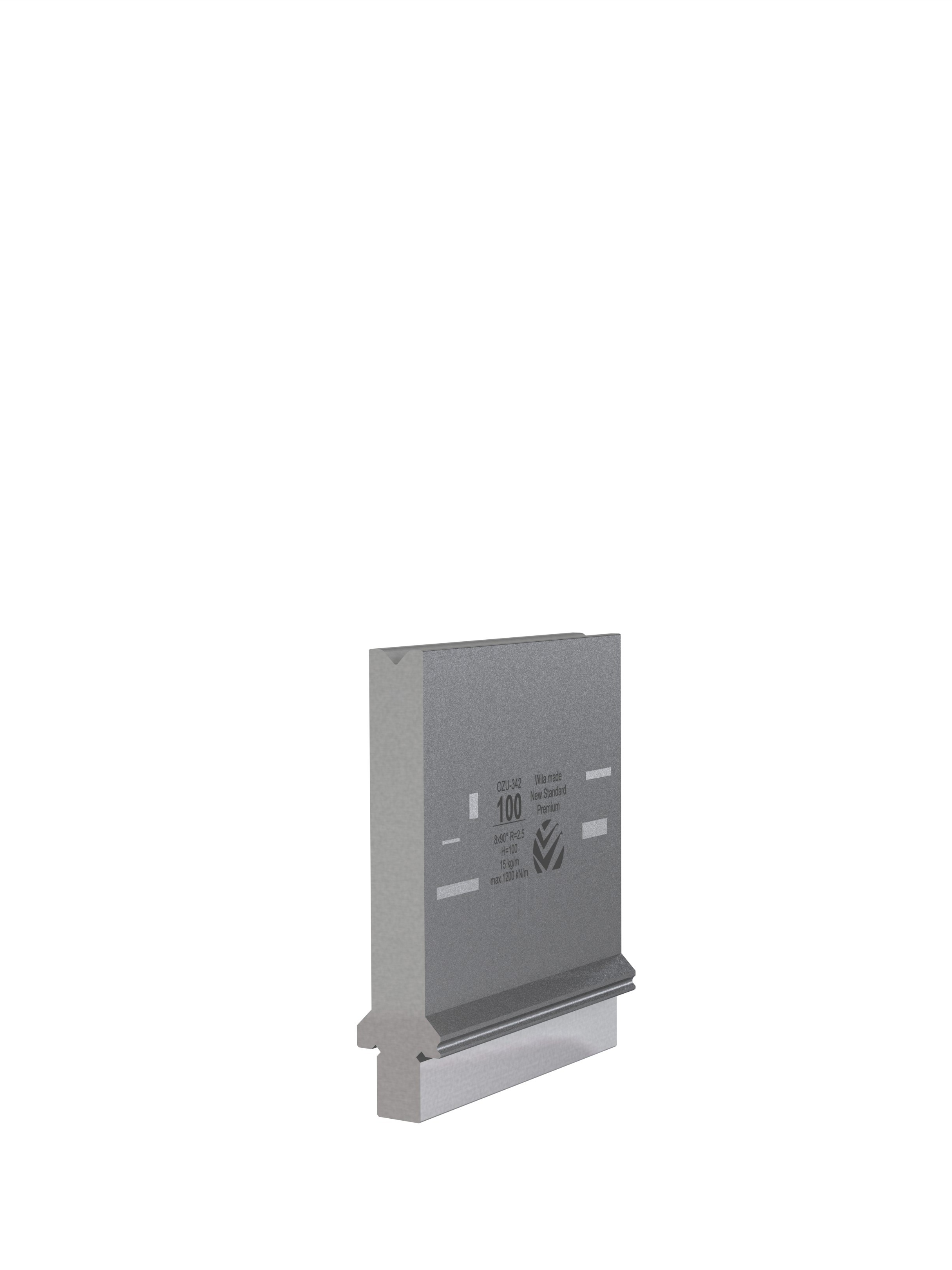

OZU-342

OZU-342

New Standard Premium Bottom Tool
  • Working height = 100mm
  • V-opening = 8mm/90°
  • Radius = 2.5mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 120ton/m
  • Max. load = 120ton/m (α = 90°)
OZU-342/1 515mm
277205
7.5kg / 16.6lbs
OZU-342/2 550mm (segmented)
277206
8.0kg / 17.7lbs
OZU-342/3 200mm (segmented)
277207
2.9kg / 6.4lbs
OZU-342/12 255mm
377738
3.7kg / 8.2lbs
OZU-EB-342/1 515mm
406936
7.7kg / 17.0lbs
OZU-EB-342/2 550mm (segmented)
407339
8.0kg / 17.7lbs
OZU-EB-342/3 200mm (segmented)
407340
3.0kg / 6.6lbs
OZU-EB-342/12 255mm
407668
3.7kg / 8.2lbs
OZU-ZN-342/1 515mm
357932
7.7kg / 17.0lbs
OZU-ZN-342/2 550mm (segmented)
357933
8.0kg / 17.7lbs

Description

New Standard Premium bottom tool Working height=100mm, V-opening=8mm/90°, Bending radius=2.5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO
Max. load=120ton/m, Max. load=120ton/m (α=90°).

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
