OZU-372

OZU-372

New Standard Premium Bottom Tool
  • Working height = 100mm
  • V-opening = 80mm/60°
  • Radius = 16mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 220ton/m (α = 90°)
  • Max. load = 220ton/m (α = 90°)
Log into the WILA webshop
OZU-372/1 515mm
352004
33.1kg / 72.9lbs
OZU-372/12 255mm
352155
16.4kg / 36.1lbs
OZU-E2M-372/1 515mm
352542
E2M® 33.1kg / 72.9lbs
OZU-E2M-372/12 255mm
357238
E2M® 16.3kg / 36.0lbs

Description

New Standard Premium bottom tool Working height=100mm, V-opening=80mm/60°, Bending radius=16mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=220ton/m (α=90°), Max. load=220ton/m (α=90°).

Open in WILA Smart Tooling App

View all information available in the Smart Tooling app

More about the WILA Smart Tooling App

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.

Downloads

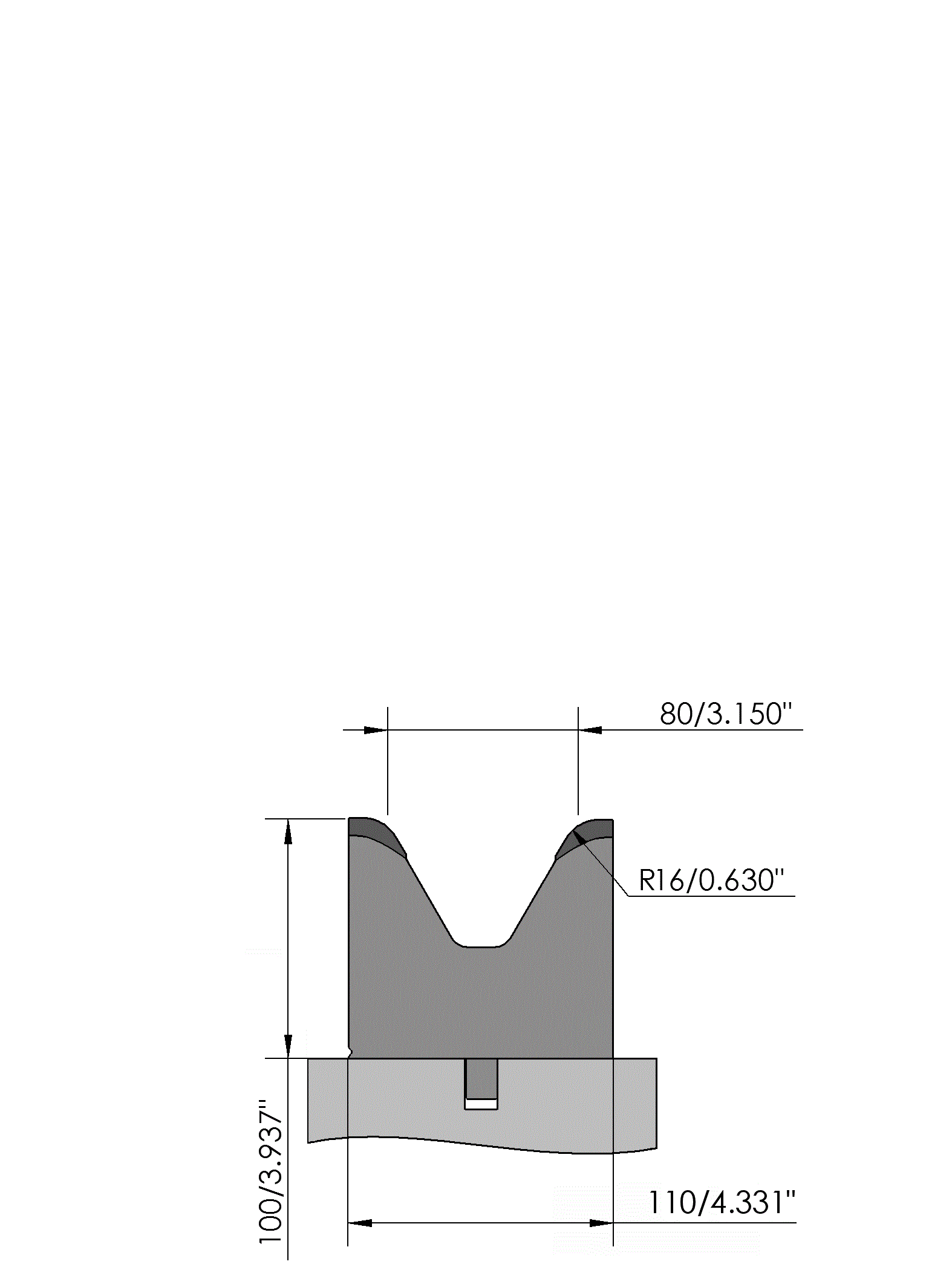

Outlinedrawing OZU-372 (DXF)
New Standard Premium
