OZU-HD-374

OZU-HD-374

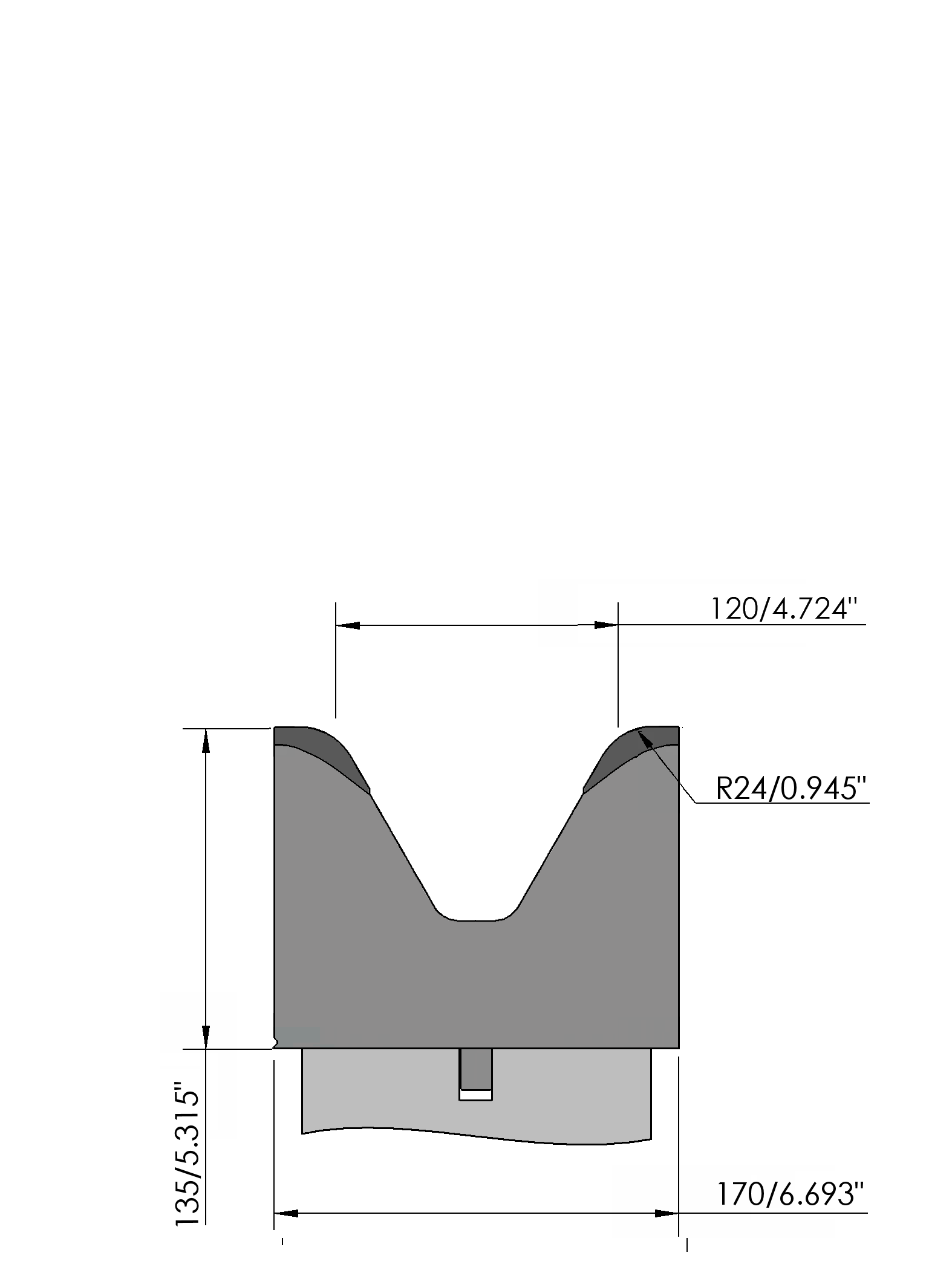

New Standard Premium Bottom Tool
  • Working height = 135mm
  • V-opening = 120mm/60°
  • Radius = 24mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 270ton/m (α = 90°)
  • Max. load = 270ton/m (α = 90°)
OZU-HD-374/1 515mm
352160
67.6kg / 149.0lbs
OZU-HD-374/12 255mm
352161
33.5kg / 73.8lbs
OZU-HD-E2M-374/1 515mm
357236
E2M® 67.5kg / 148.8lbs
OZU-HD-E2M-374/12 255mm
357240
E2M® 33.5kg / 73.8lbs

Description

New Standard Premium bottom tool Working height=135mm, V-opening=120mm/60°, Bending radius=24mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), , Max. load=270ton/m (α=90°), Max. load=270ton/m (α=90°).

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
