BIU-037

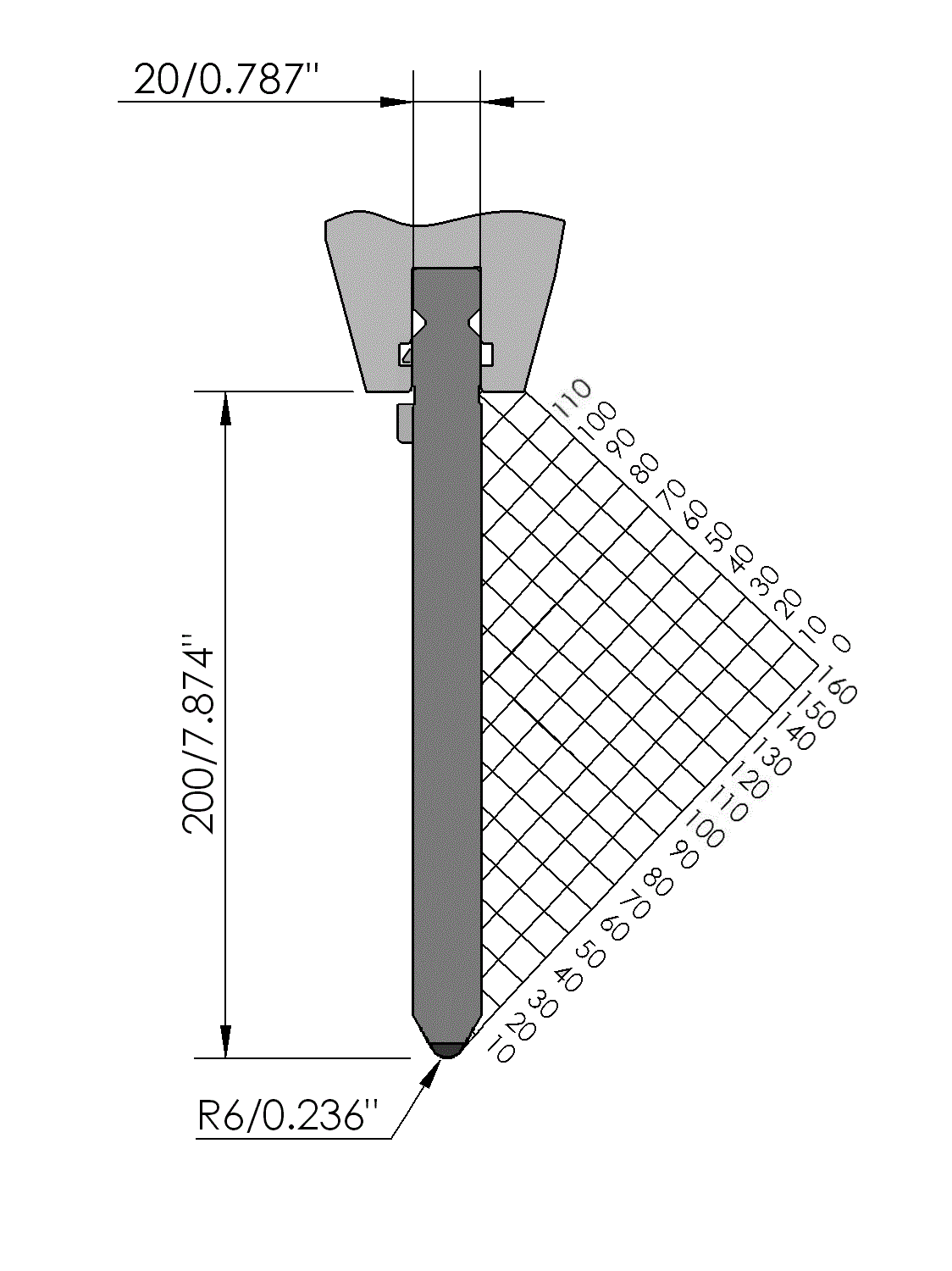

New Standard Premium Top Tool

Working height H = 200mm
Tip angle α = 60°
Radius R = 6mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 160ton/m

Entre en la tienda web de WILA


BIU-037/1 515mm	Safety pins	19.1kg / 42.1lbs
BIU-037/2 550mm (segmented)	Safety-Clicks®	20.4kg / 45.0lbs
BIU-037/3 200mm (segmented)	Safety-Clicks®	7.4kg / 16.4lbs
BIU-037/11 200mm (segmented)	Safety-Clicks®	7.4kg / 16.4lbs
BIU-037/12 255mm	Safety-Clicks®	9.5kg / 20.9lbs
BIU-E2M-037/1 515mm	E2M®	19.2kg / 42.2lbs
BIU-037 1x:20mm	Safety-Clicks®	0.7kg / 1.6lbs

Descripción

New Standard Premium top tool with Working height H=200mm, α=60°, Radius=6mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=160ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
