OZU-011

OZU-011

New Standard Premium Bottom Tool
  • Working height = 55mm
  • V-opening = 12mm/86°
  • Radius = 1mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 120ton/m
  • Max. load = 120ton/m (α = 90°)
Entre en la tienda web de WILA
OZU-011/1 515mm
276910
5.3kg / 11.7lbs
OZU-011/2 550mm (segmented)
276911
5.7kg / 12.5lbs
OZU-011/3 200mm (segmented)
276912
2.1kg / 4.5lbs
OZU-011/12 255mm
377721
2.6kg / 5.8lbs
OZU-EB-011/1 515mm
406886
5.3kg / 11.7lbs
OZU-EB-011/2 550mm (segmented)
406968
5.7kg / 12.5lbs
OZU-EB-011/3 200mm (segmented)
406969
2.2kg / 4.9lbs
OZU-EB-011/12 255mm
407613
2.6kg / 5.8lbs
OZU-ZN-011/1 515mm
357834
5.3kg / 11.7lbs
OZU-ZN-011/2 550mm (segmented)
357835
5.7kg / 12.5lbs

Descripción

New Standard Premium bottom tool Working height=55mm, V-opening=12mm/86°, Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO
Max. load=120ton/m, Max. load=120ton/m (α=90°).

Abrir en la aplicación Smart Tooling de WILA

Ver toda la información disponible en la aplicación para móvil Smart Tooling

Más información sobre la aplicación Smart Tooling de WILA

Escanee el código DM con su aplicación Smart Tooling

Utilice la aplicación para móvil Smart Tooling de WILA para escanear el código DM y tener acceso a más información.

Descargas

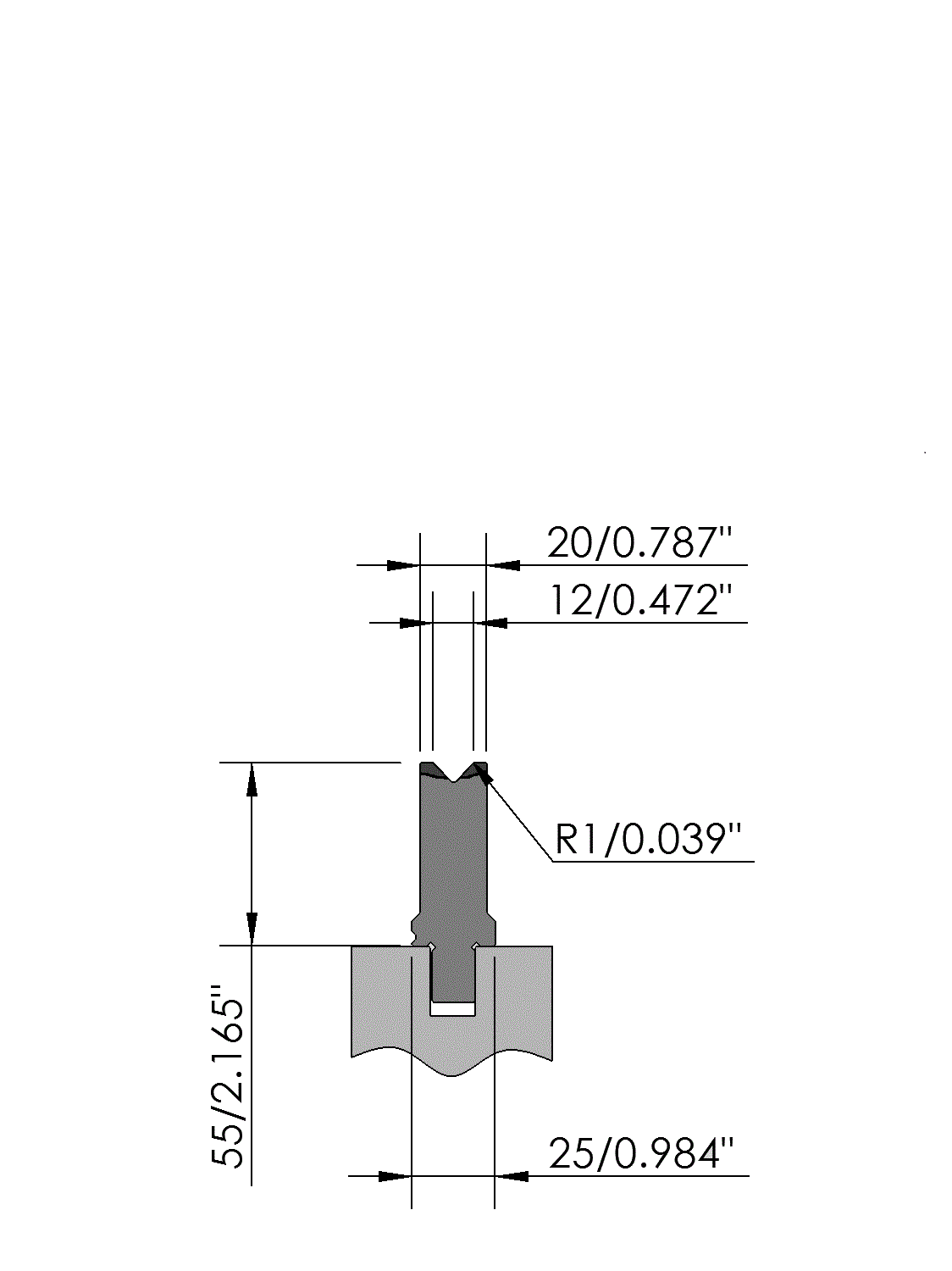

Outlinedrawing OZU-011 (DXF)
New Standard Premium
