OZU-031

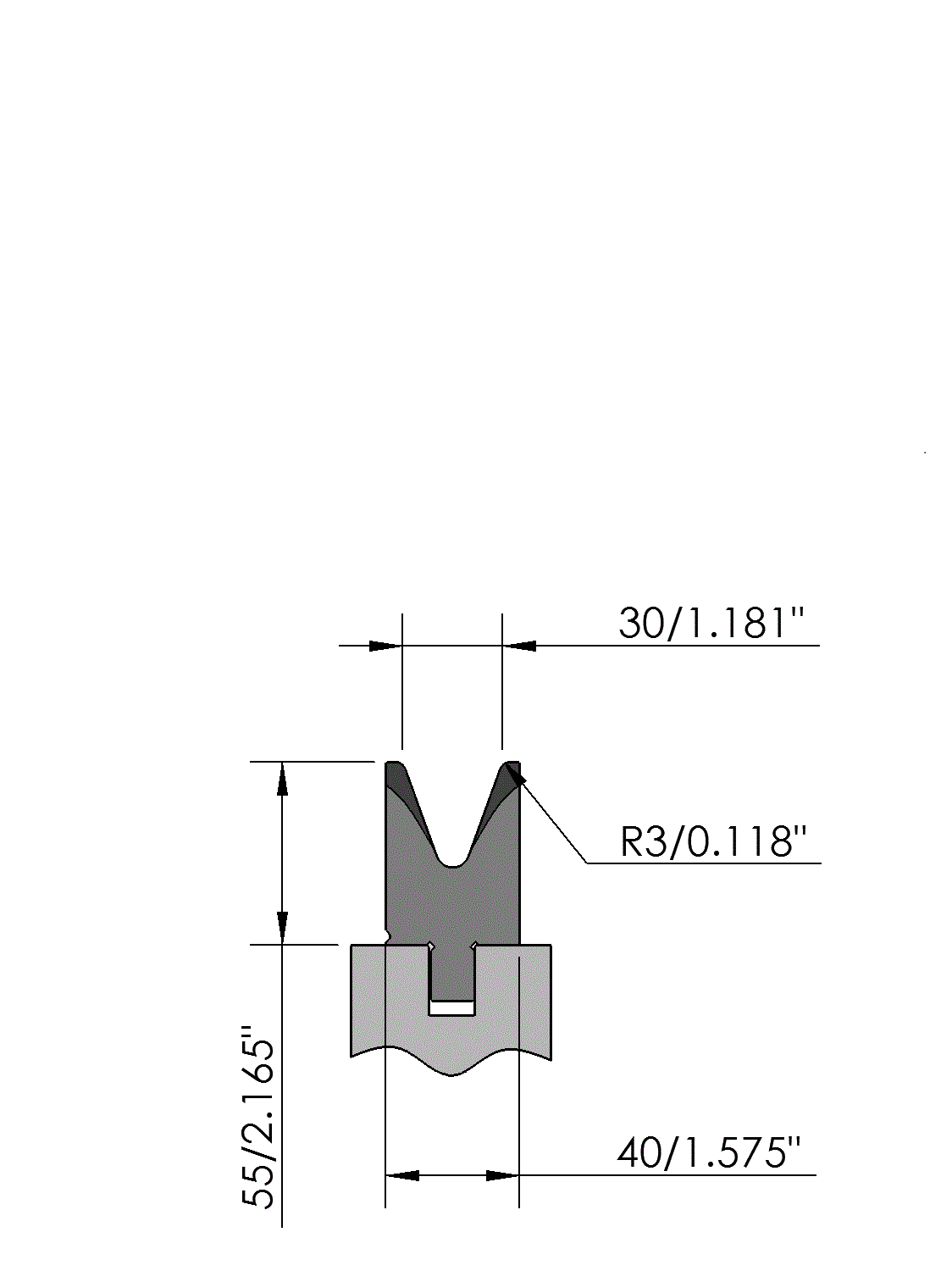

New Standard Premium Bottom Tool

Working height = 55mm
V-opening = 30mm/40°
Radius = 3mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 70ton/m (α = 90°)
Max. load = 70ton/m (α = 90°)

Entre en la tienda web de WILA


OZU-031/1 515mm		7.4kg / 16.3lbs
OZU-031/2 550mm (segmented)		7.9kg / 17.3lbs
OZU-031/3 200mm (segmented)		2.9kg / 6.3lbs
OZU-031/12 255mm		3.6kg / 8.0lbs
OZU-EB-031/1 515mm		7.4kg / 16.2lbs
OZU-EB-031/2 550mm (segmented)		7.9kg / 17.3lbs
OZU-EB-031/3 200mm (segmented)		2.9kg / 6.3lbs
OZU-EB-031/12 255mm		3.6kg / 8.0lbs
OZU-031 1x:20mm		0.3kg / 0.6lbs
OZU-031 1x:25mm		0.4kg / 0.8lbs

Descripción

New Standard Premium bottom tool Working height=55mm, V-opening=30mm/40°, Bending radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=70ton/m (α=90°), Max. load=70ton/m (α=90°).
