NSCL-I-HC-TY/ES I

NSCL-I-HC-TY/ES I

New Standard Pro Clamping
  • Clamping Type = Hydraulic
  • Adaption = upper adaptation
  • Working height H = 100mm
  • Width W = 88mm
  • Max. load = 250ton/m
NSCL-I-HC-TY/ES I-1190 51.8kg
NSCL-I-HC-TY/ES I-1530 66.6kg
NSCL-I-HC-TY/ES I-1785 77.6kg
NSCL-I-HC-TY/ES I-2040 88.7kg
NSCL-I-HC-TY/ES I-2380 103.5kg
NSCL-I-HC-TY/ES I-2550 110.9kg
NSCL-I-HC-TY/ES I-3060 133.1kg
NSCL-I-HC-TY/ES I-3655 159.0kg
NSCL-I-HC-TY/ES I-4080 177.5kg
NSCL-I-HC-TY/ES I-4250 184.9kg

Description

New Standard Pro Clamping

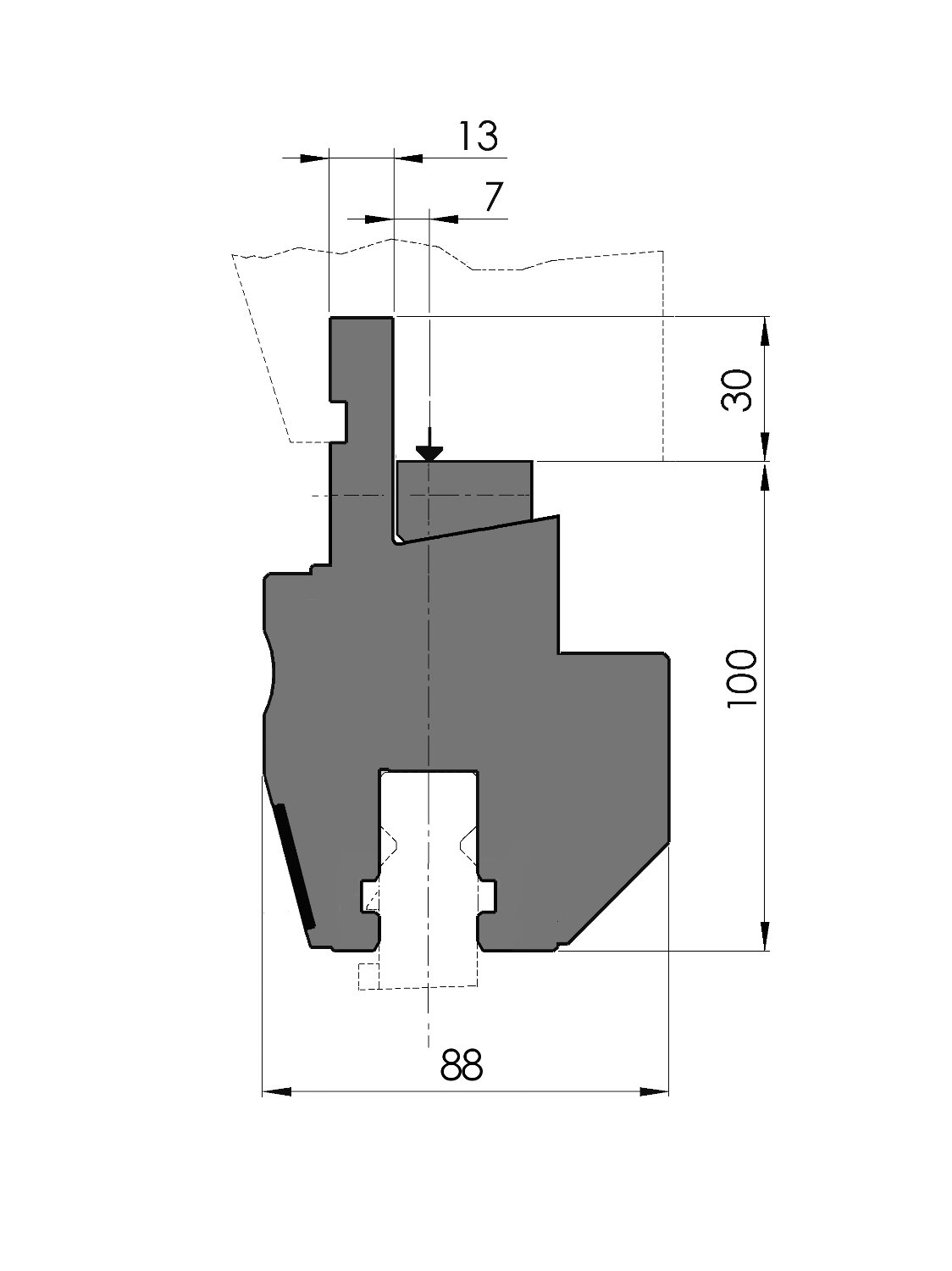

Working height=100mm, Width=88mm, provided with Amada adaptation (center line at 7mm) with crowning key (Ty-alignment), manually by means of push and pull screws, hydraulic clamping (max. 50bar), oil supply ø10mm, left and right end, Material=C45 not hardened, Weight=46kg/m, Max. load=250ton/m.
Delivery with coverstrip and scale ("0" at the left).Delivery without hydraulic power pack and guards.
