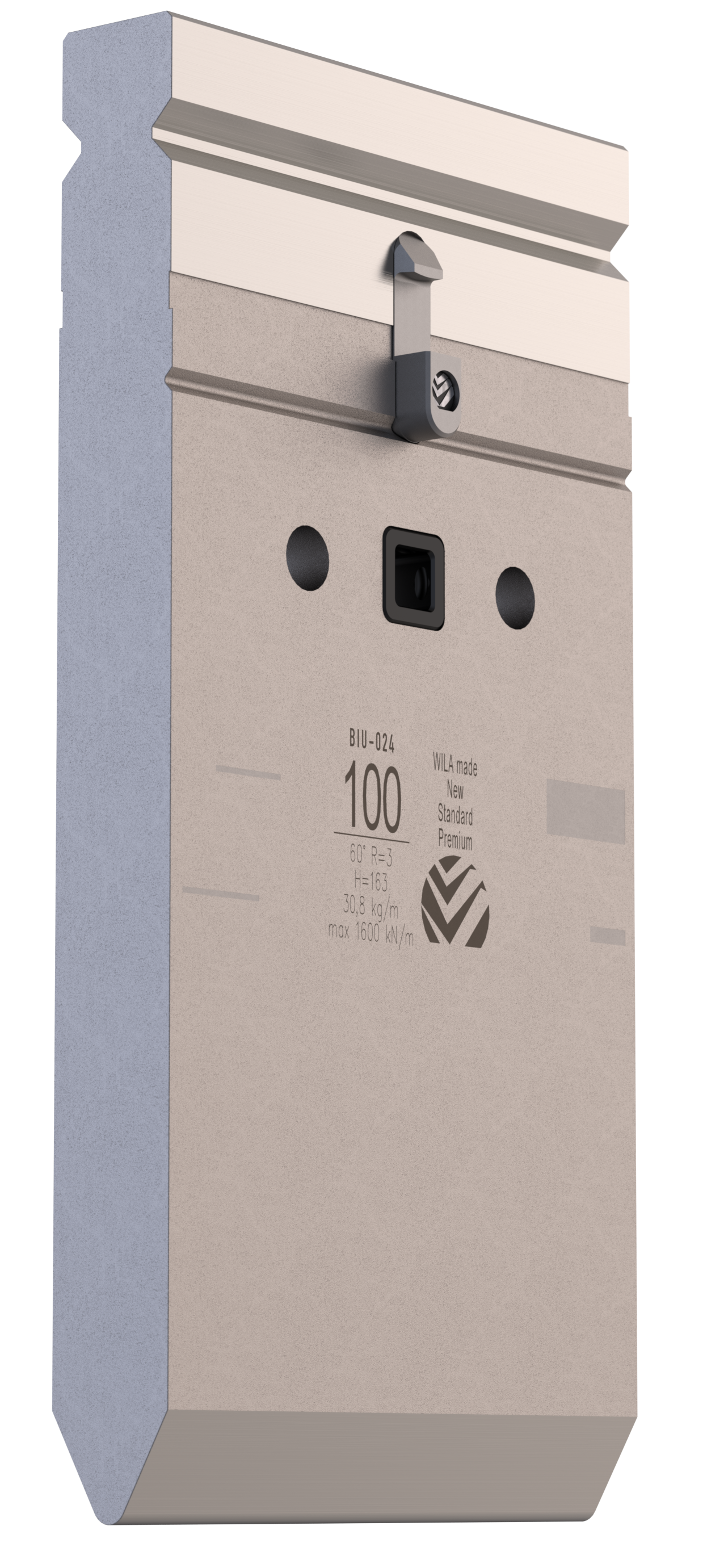

BIU-024 ATC

BIU-024 ATC

New Standard Premium Top Tool ATC
  • Working height H = 163mm
  • Tip angle α = 60°
  • Radius R = 3mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 160ton/m
  • Provided with ATC-adapter
BIU-024/2-ATC 550mm (segmented)
383444
Safety-Clicks® 16.9kg
BIU-024/2m-ATC 550mm (segmented)
373024
Safety-Clicks® 16.9kg
BIU-024/3-ATC 200mm (segmented)
397842
Safety-Clicks® 6.2kg
BIU-024/12-ATC 255mm
390340
Safety-Clicks® 7.9kg

Description

New Standard Premium top tool provided with ATC-adapter, with Working height H=163mm, α=60°, Radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=160ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
