BIU-034 ATC

BIU-034 ATC

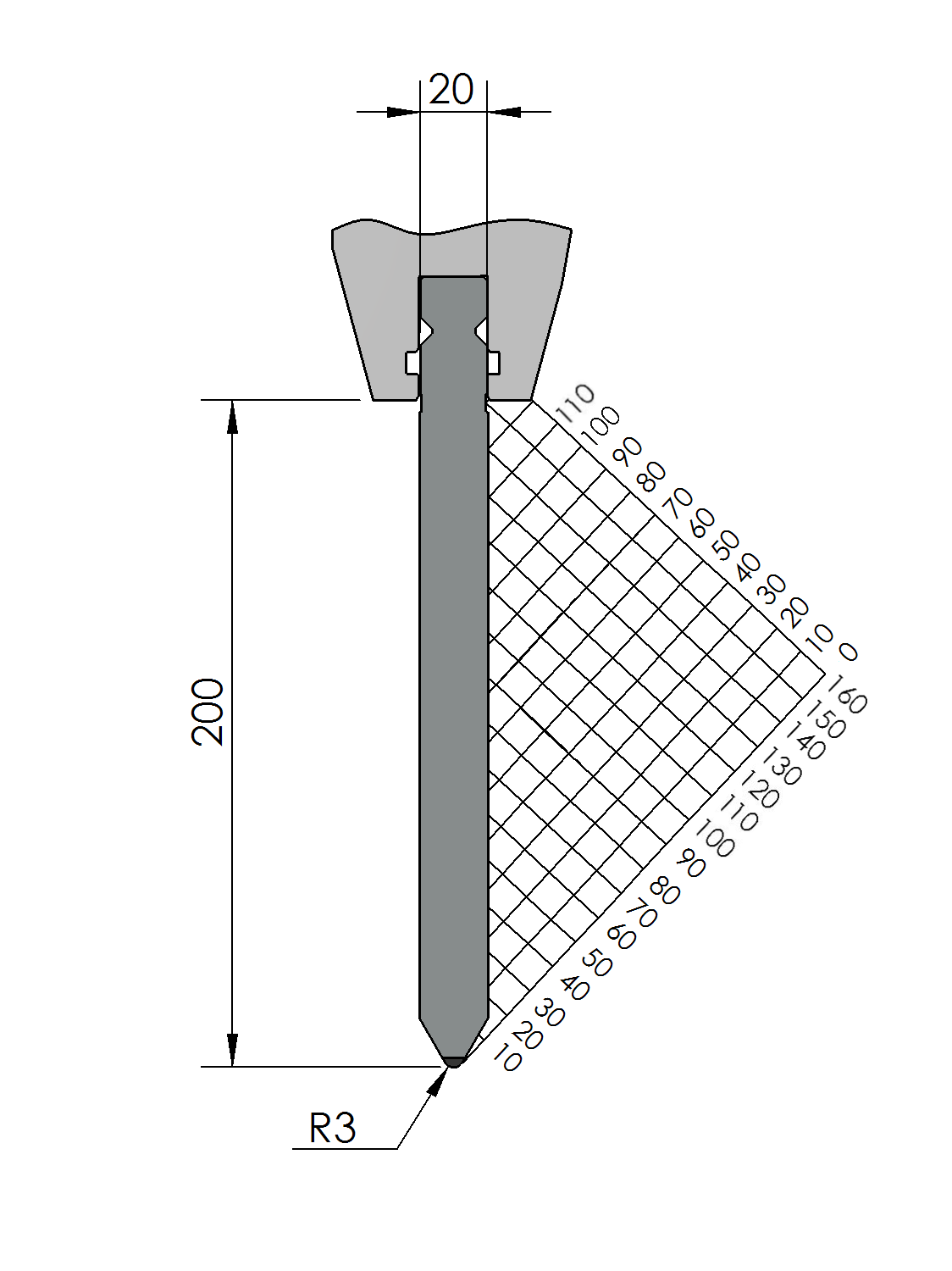

New Standard Premium Top Tool ATC
  • Working height H = 200mm
  • Tip angle α = 60°
  • Radius R = 3mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 160ton/m
  • Provided with ATC-adapter

Description

New Standard Premium top tool provided with ATC-adapter, with Working height H=200mm, α=60°, Radius=3mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=160ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
