BIU-037 ATC

BIU-037 ATC

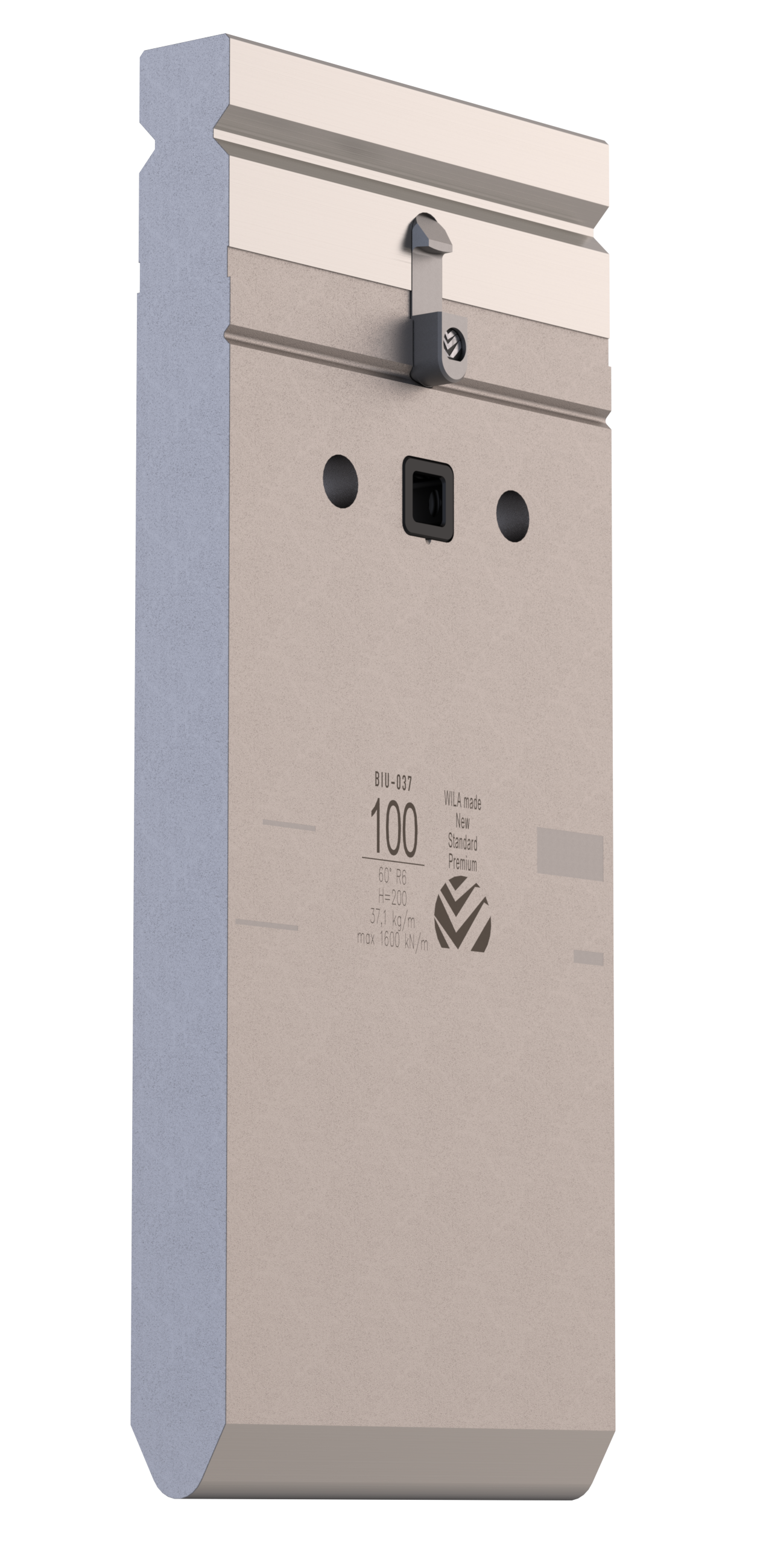

New Standard Premium Top Tool ATC

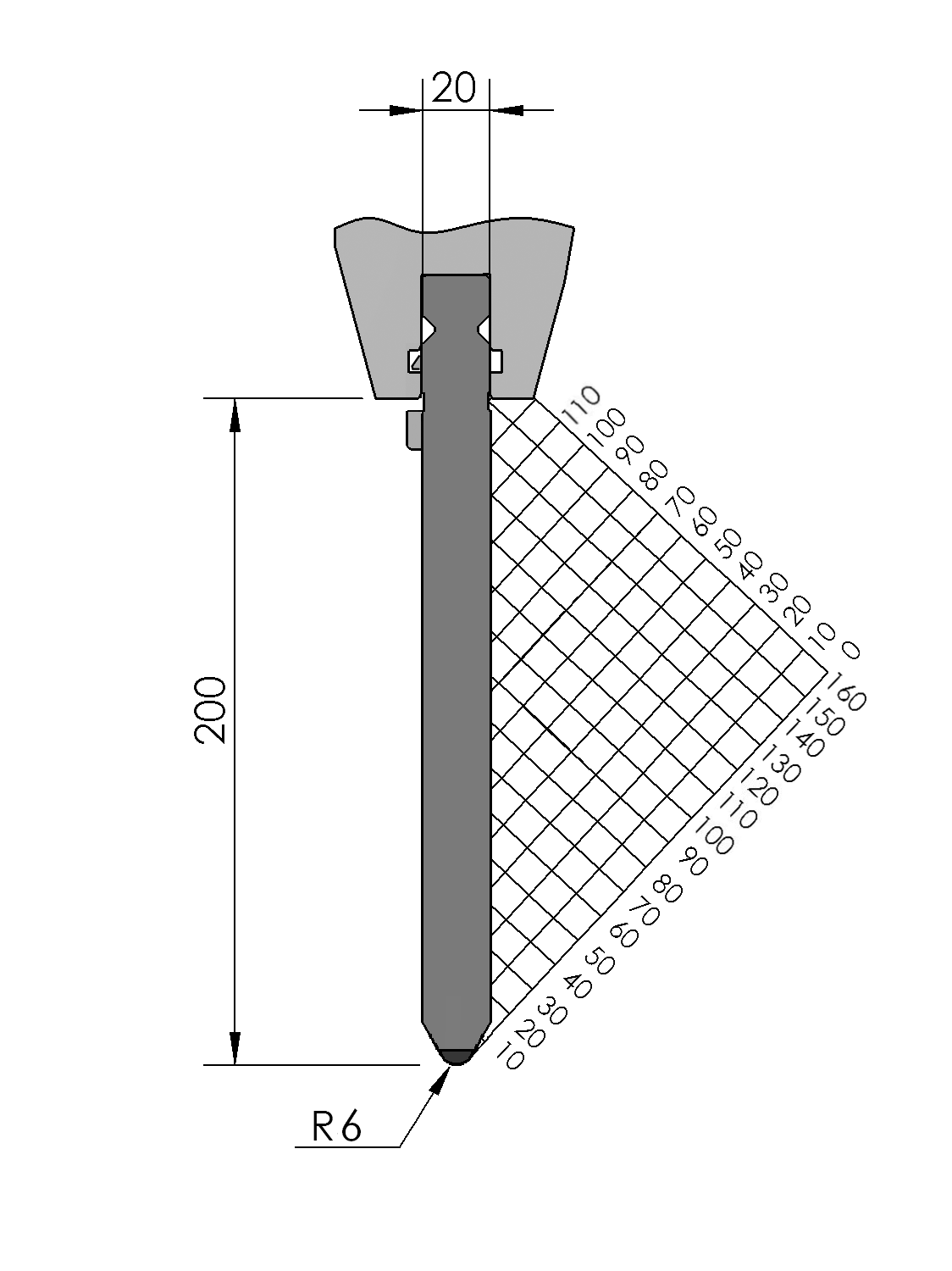

  • Working height H = 200mm
  • Tip angle α = 60°
  • Radius R = 6mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 160ton/m
  • Provided with ATC-adapter
BIU-037/2-ATC 550mm (segmented)
399105
Safety-Clicks® 20.4kg
BIU-037/3-ATC 200mm (segmented)
399108
Safety-Clicks® 7.4kg
BIU-037/12-ATC 255mm
385495
Safety-Clicks® 9.5kg

Description

New Standard Premium top tool provided with ATC-adapter, with Working height H=200mm, α=60°, Radius=6mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=160ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
