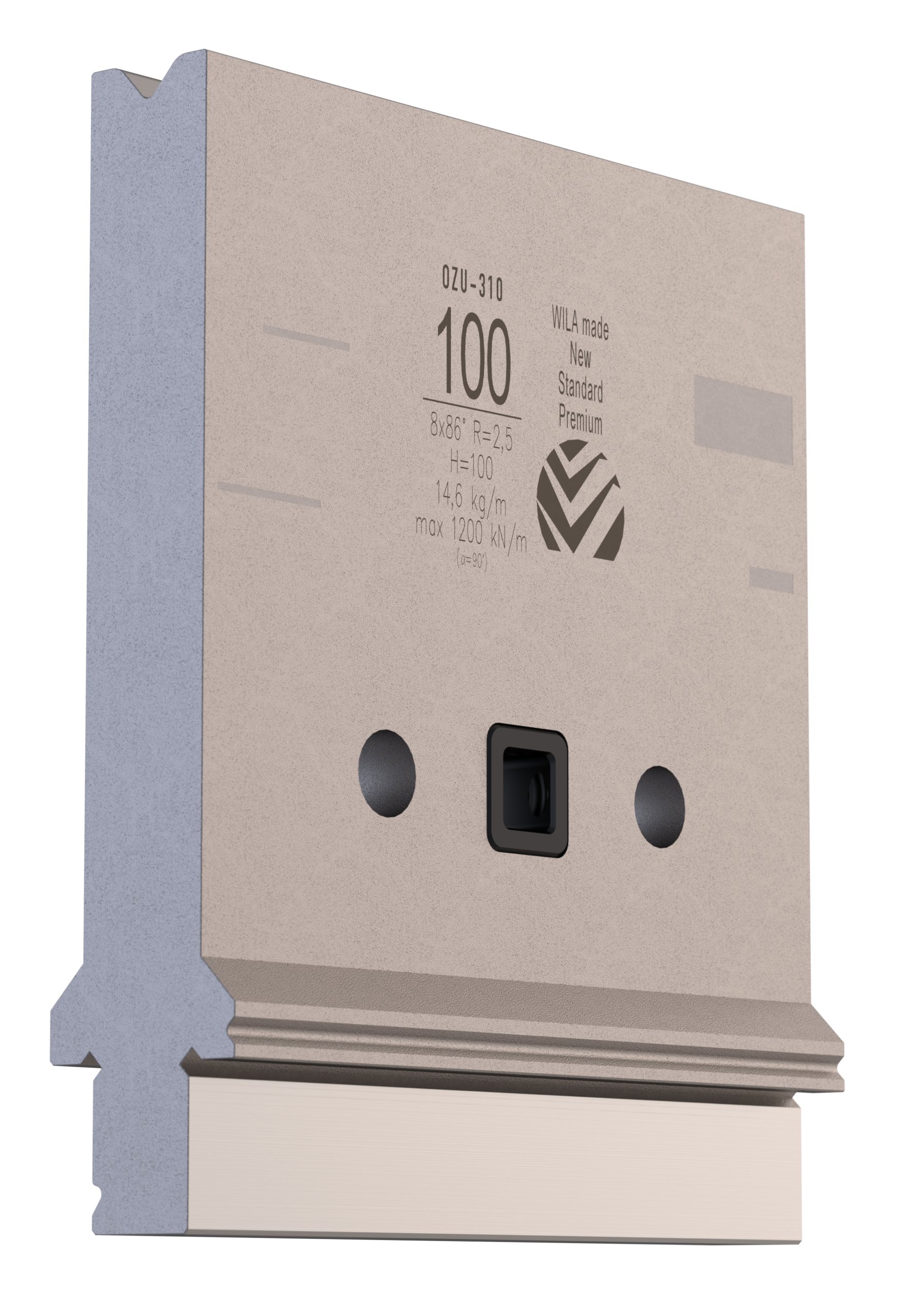

OZU-310 ATC

OZU-310 ATC

New Standard Premium Bottom Tool ATC

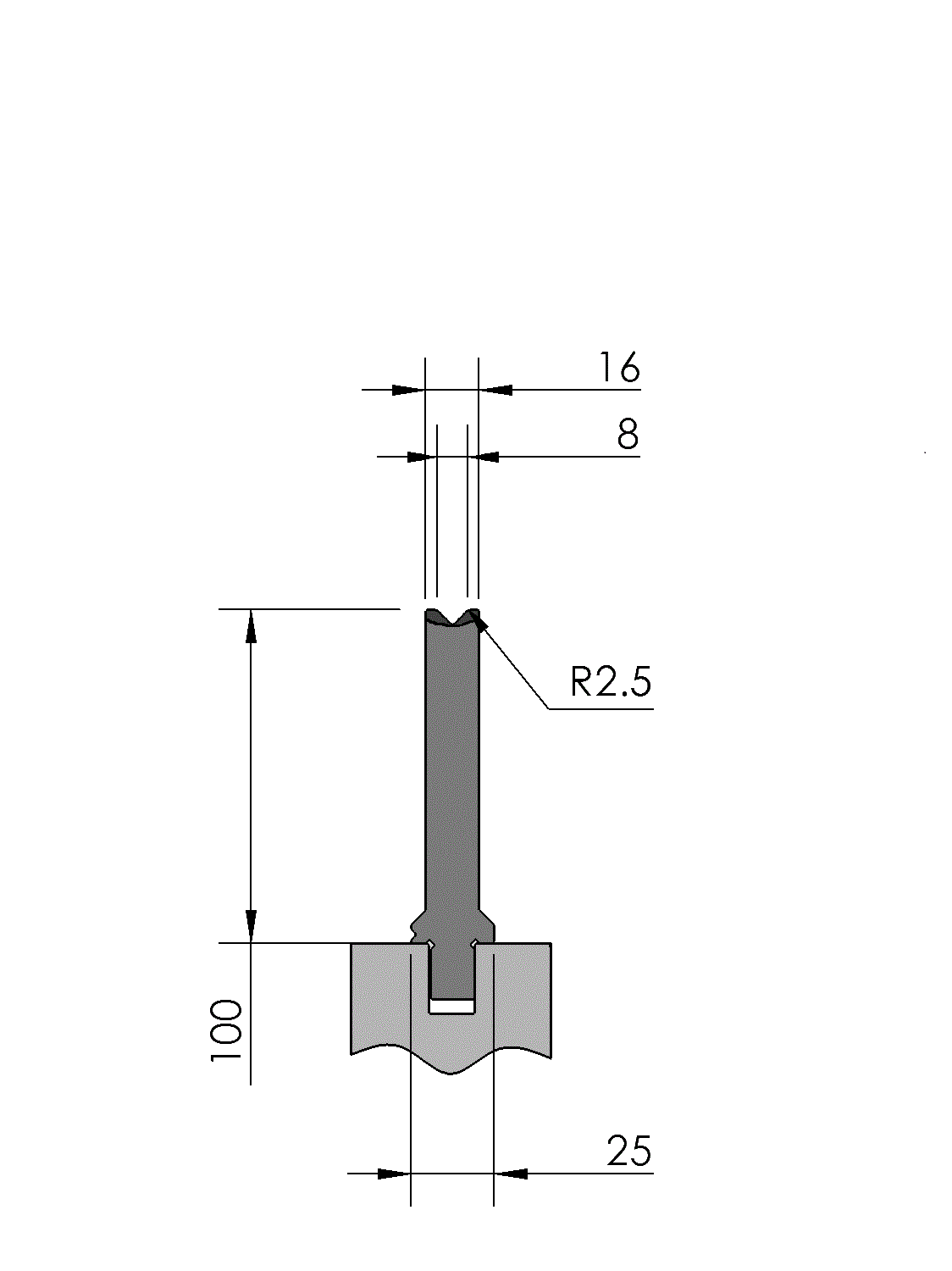

  • Working height = 100mm
  • V-opening = 8mm/86°
  • Radius = 2.5mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 120ton/m
  • Provided with ATC-adapter

Description

New Standard Premium bottom tool provided with ATC-adapter. Working height=100mm, V-opening=8mm/86°, Bending radius=2.5mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO
Max. load=120ton/m.
This tool can be supplied with coating: OZU-ZN = coated bottom tool, suitable for galvanized steel. (Additional information)
