BIU-031

BIU-031

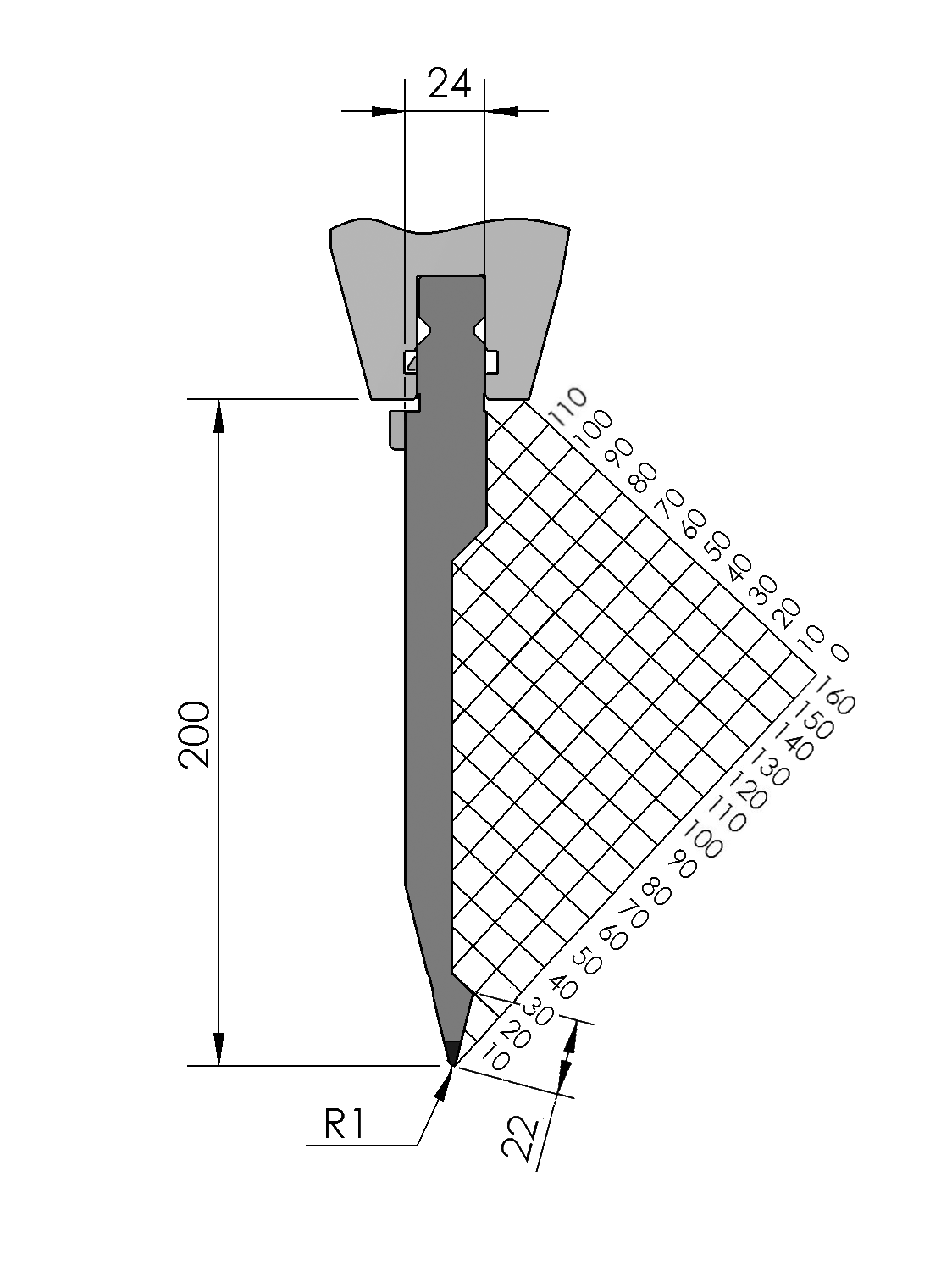

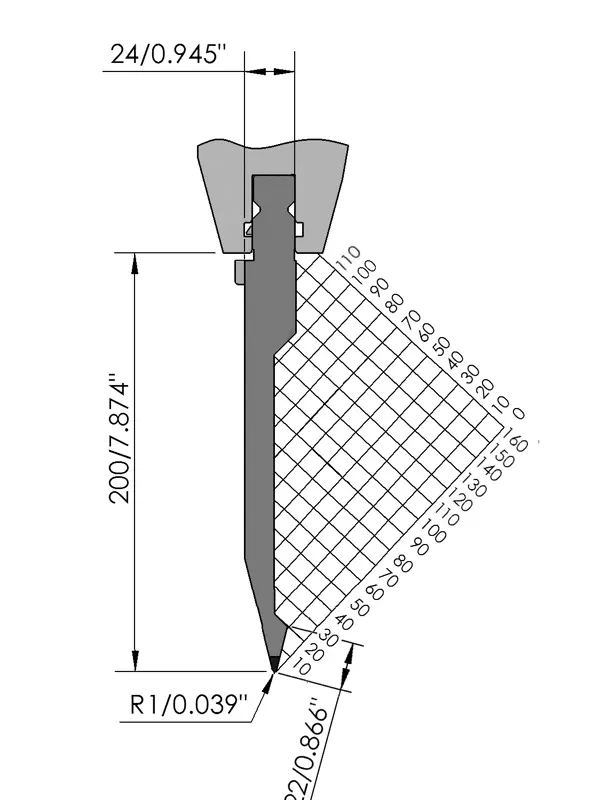

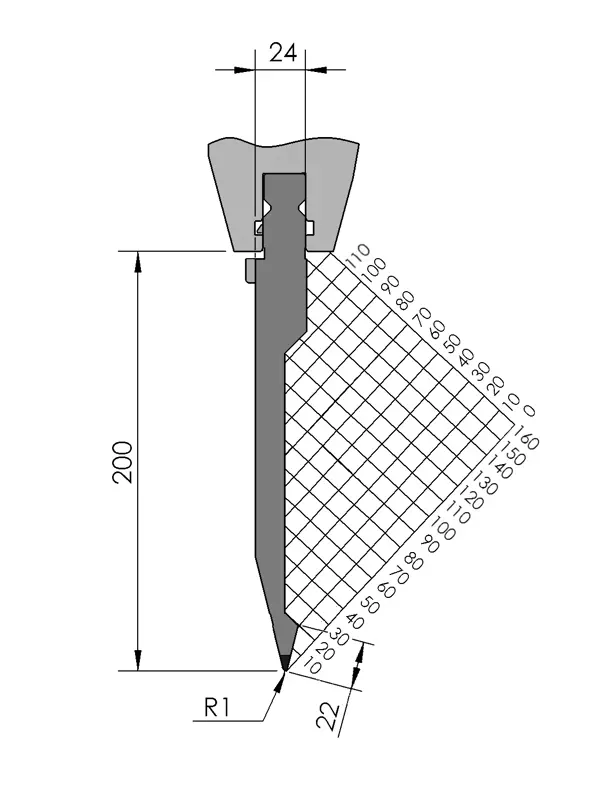

New Standard Premium Top Tool
  • Working height H = 200mm
  • Tip angle α = 28°
  • Radius R = 1mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 60ton/m

Description

New Standard Premium top tool with Working height H=200mm, α=28°, Radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=60ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
