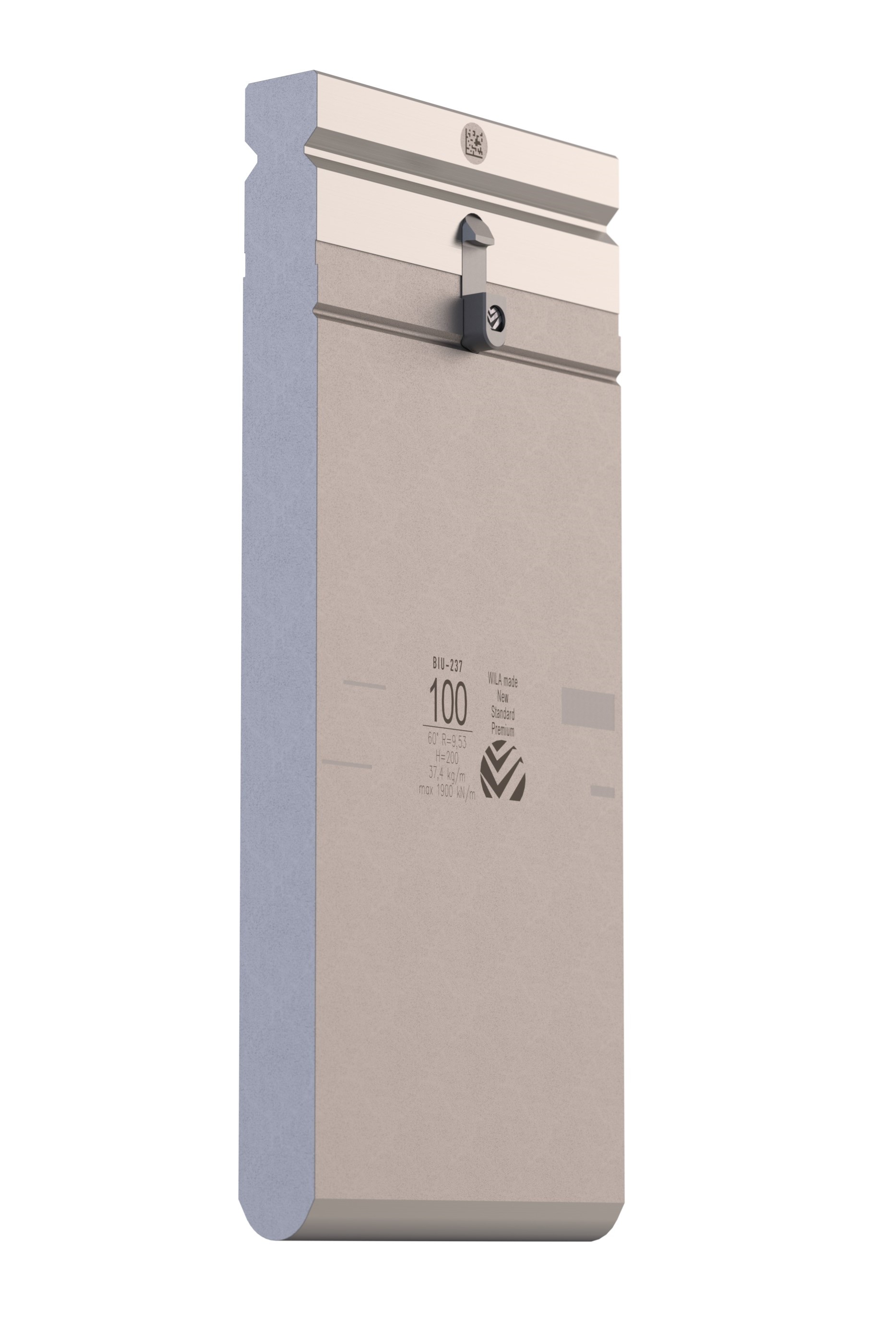

BIU-237

BIU-237

New Standard Premium Top Tool

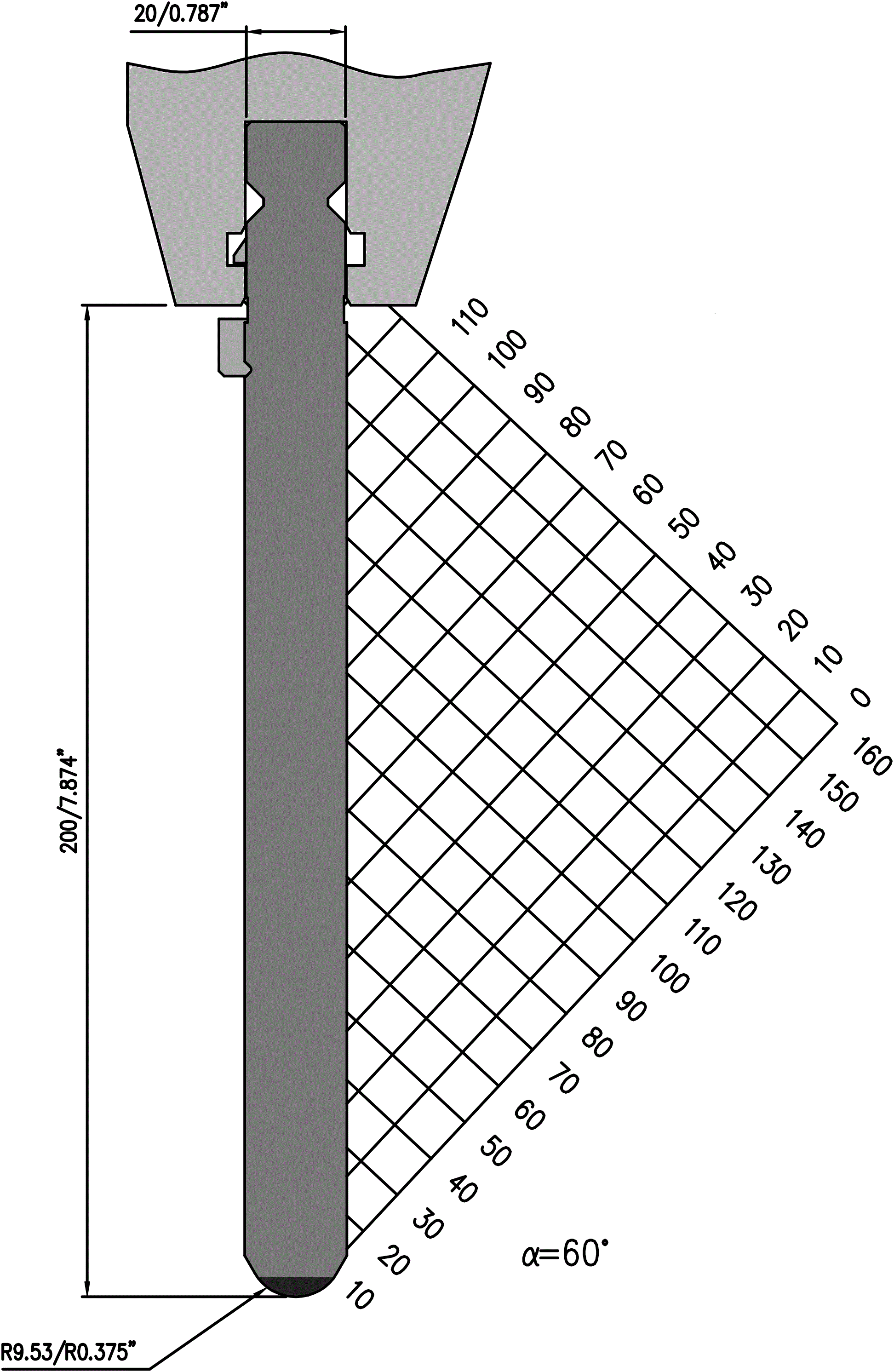

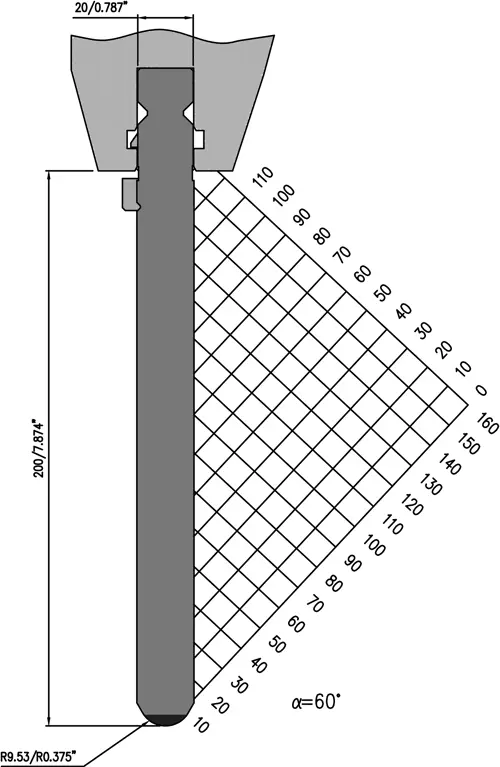

  • Working height H = 200mm
  • Tip angle α = 60°
  • Radius R = 9.53mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 190ton/m

Description

New Standard Premium top tool with Working height H=200mm, α=60°, Radius=9.53mm CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=190ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
