OZU-013

OZU-013

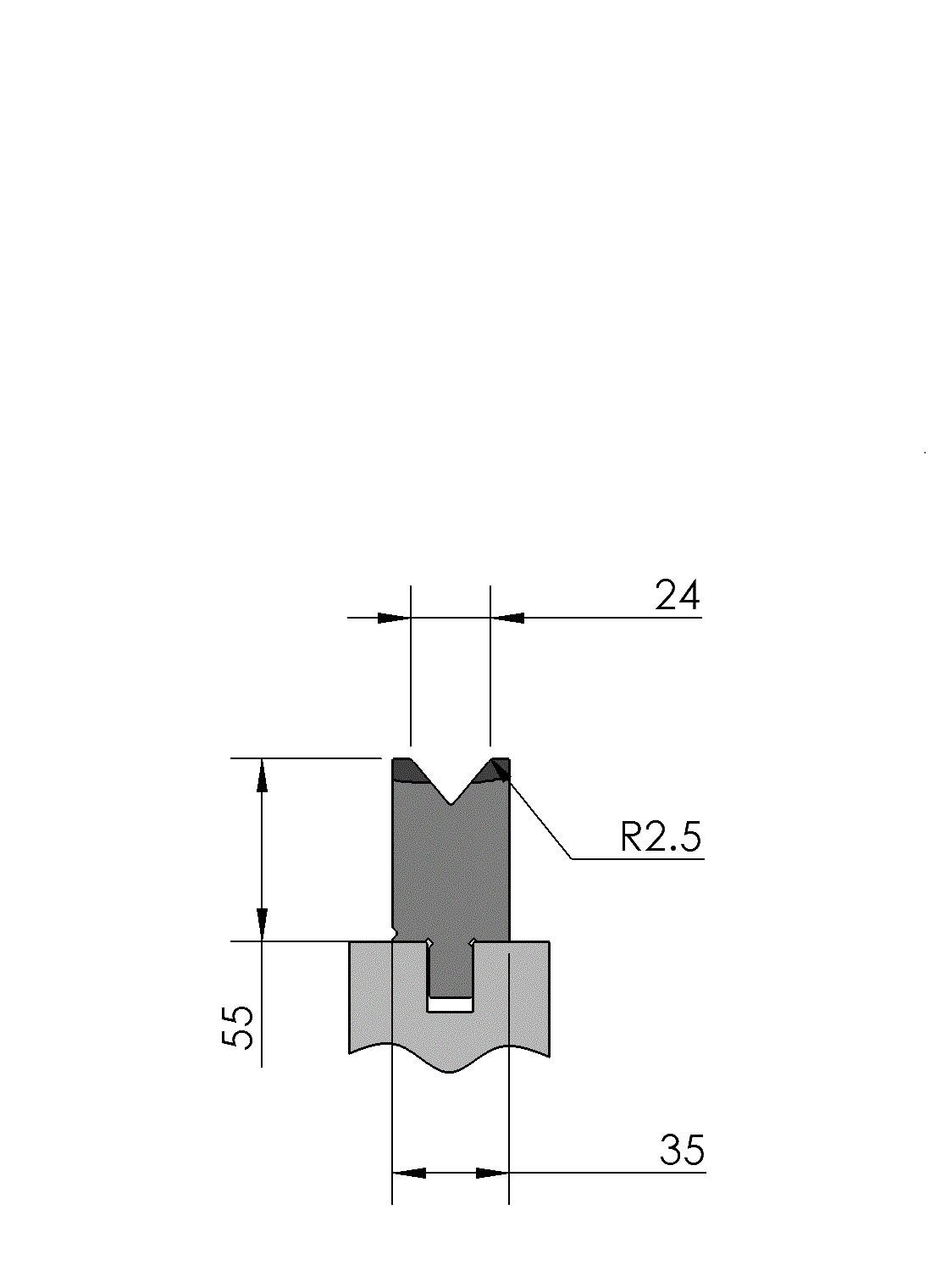

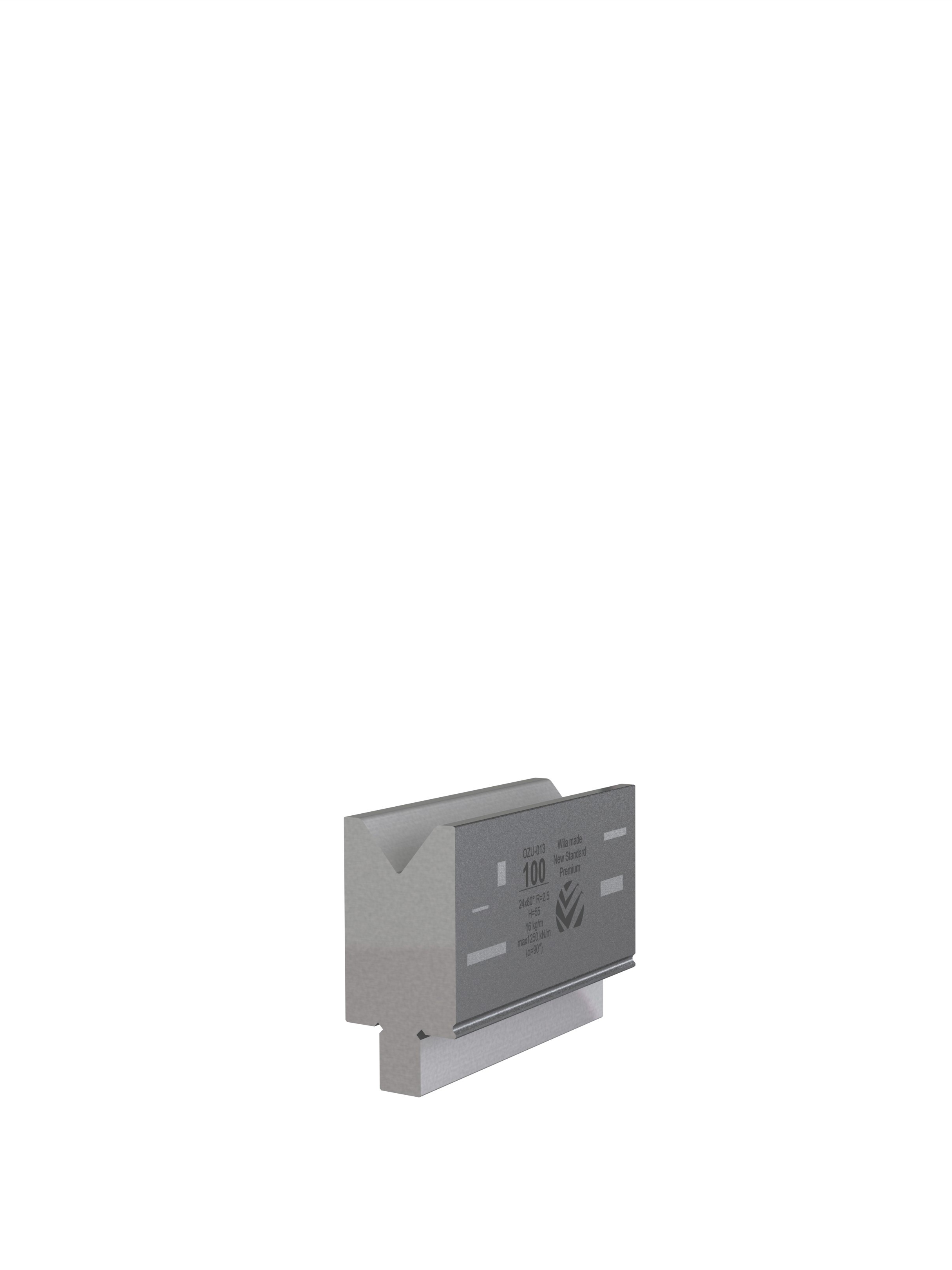

New Standard Premium Bottom Tool
  • Working height = 55mm
  • V-opening = 24mm/80°
  • Radius = 2.5mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. Belastung = 125ton/m
OZU-013/1 515mm
276923
7.9kg
OZU-013/2 550mm (segmented)
276924
8.5kg
OZU-013/3 200mm (segmented)
276925
3.1kg
OZU-013/12 255mm
377709
3.9kg
OZU-EB-013/1 515mm
406888
7.9kg
OZU-EB-013/2 550mm (segmented)
406974
8.5kg
OZU-EB-013/3 200mm (segmented)
406975
3.2kg
OZU-EB-013/12 255mm
407615
3.9kg
OZU-ZN-013/1 515mm
357814
7.9kg
OZU-ZN-013/2 550mm (segmented)
357815
8.5kg
OZU-ZN-013/3 200mm (segmented)
357816
3.2kg
OZU-013 1x:20mm
360418
0.3kg
OZU-013 1x:25mm
353461
0.4kg

Description

New Standard Premium bottom tool Working height=55mm, V-opening=24mm/80°, Bending radius=2.5mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO
Max. load = 125ton/m.
This tool can be supplied with EnduraBend coating or with the OZU-ZN coating (Additional information)

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
