OZU-015

OZU-015

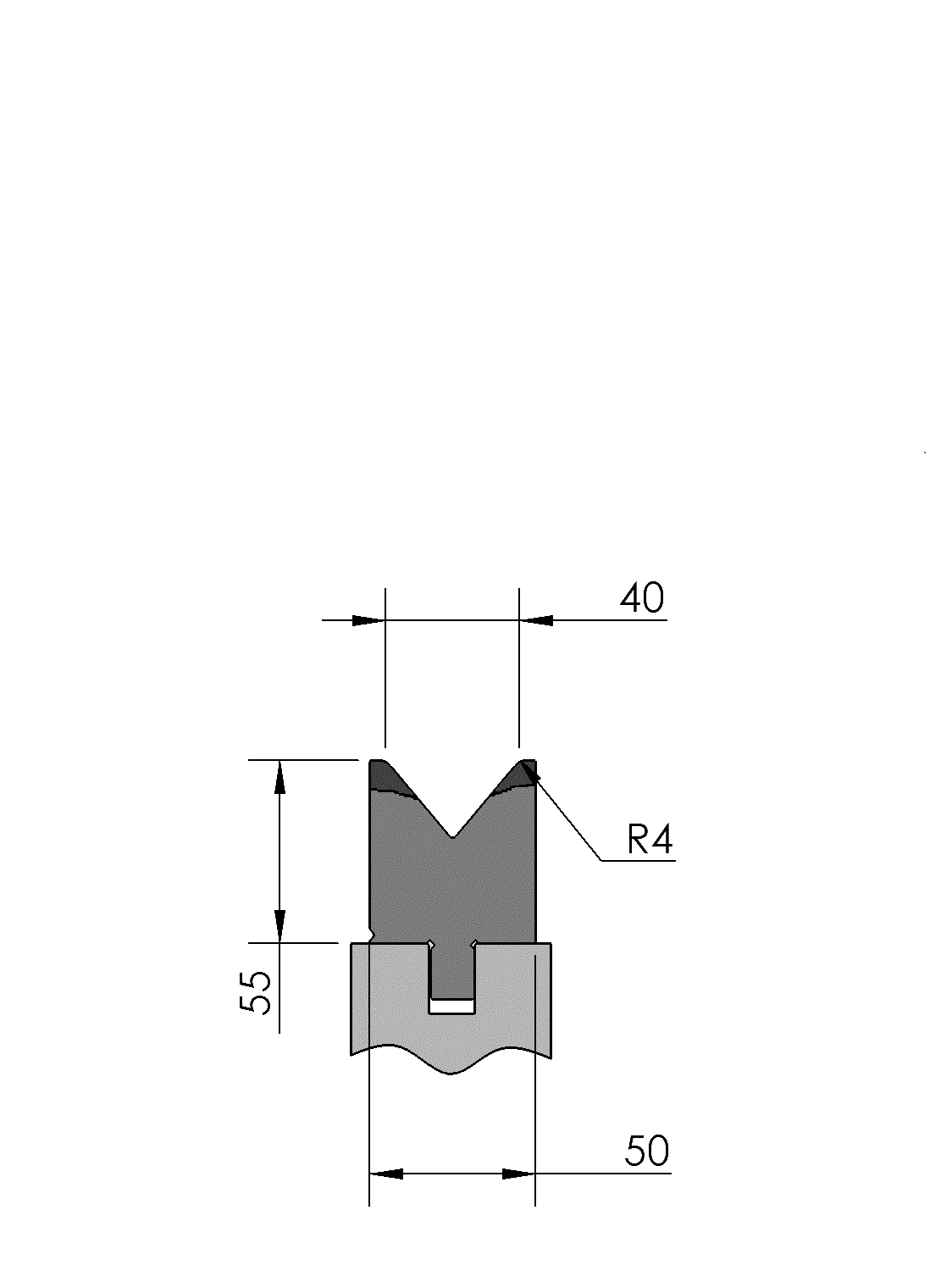

New Standard Premium Bottom Tool
  • Working height = 55mm
  • V-opening = 40mm/80°
  • Radius = 4mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. Belastung = 125ton/m
OZU-015/1 515mm
276935
10.0kg
OZU-015/2 550mm (segmented)
276936
10.7kg
OZU-015/3 200mm (segmented)
276937
3.9kg
OZU-015/12 255mm
377711
5.0kg
OZU-015 1x:20mm
360434
0.4kg
OZU-015 1x:25mm
360435
0.5kg

Description

New Standard Premium bottom tool Working height=55mm, V-opening=40mm/80°, Bending radius=4mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO
Max. load = 125ton/m.

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
