OZU-318

OZU-318

New Standard Premium Bottom Tool
  • Working height = 100mm
  • V-opening = 100mm/80°
  • Radius = 20mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. load = 150ton/m (α = 90°)
  • Max. load = 150ton/m (α = 90°)
Log into the WILA webshop

Description

New Standard Premium bottom tool Working height=100mm, V-opening=100mm/80°, Bending radius=20mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=150ton/m (α=90°), Max. load=150ton/m (α=90°).

Open in WILA Smart Tooling App

View all information available in the Smart Tooling app

More about the WILA Smart Tooling App

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.

Downloads

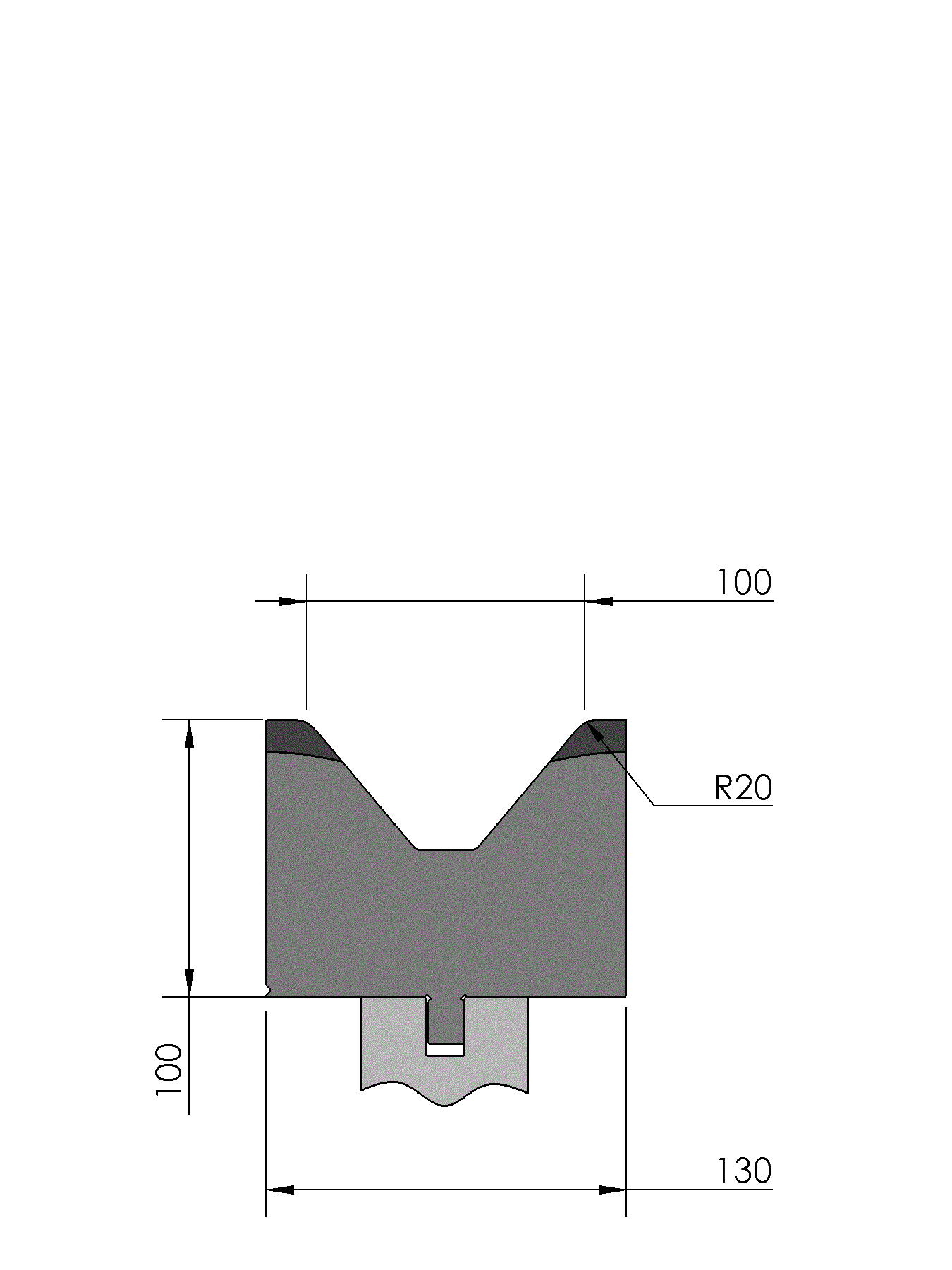

Outlinedrawing OZU-318 (DXF)
Thank you for your interest!

Please leave your email address and we'll send you a download link straight away. Or register for MyWILA and get immediate access to all WILA online content.

Guest download Sign in
Already have an account? Sign in
New Standard Premium
