HU-006

HU-006

New Standard Tool Holder for Offset and Flattening
  • Suitable for inserts (INZU)
  • Working height = 100mm (incl. INZU)
  • Width W = 60mm
  • Material = C45
  • Weight W = 36.9kg/m
  • Max. load = 100ton/m
    • Log into the WILA webshop
    HU-006/1 515mm 19.0kg

    Description

    New Standard holder suitable for inserts (INZU), Working height=100mm (incl. INZU), Width=60mm,Material=C45, Weight=36.9kg/m, Max. load=100 ton/m.

    Downloads

    Outlinedrawing HU-006 (DXF)
    Tool extenders and adapters

    Related products

    INZU-001/Z1
    Orderable

    INZU-001/Z1

    Insert set of 2 parts
    Width W = 23mm, Z = 1mm/160°,
    Max. load = 100ton/m.

    INZU-001/Z1.5
    Orderable

    INZU-001/Z1.5

    Insert set of 2 parts
    Width W = 23mm, Z = 1.50mm/160°,
    Max. load = 100ton/m.

    INZU-001/Z2
    Orderable

    INZU-001/Z2

    Insert set of 2 parts
    Width W = 23mm, Z = 2mm/150°,
    Max. load = 100ton/m.

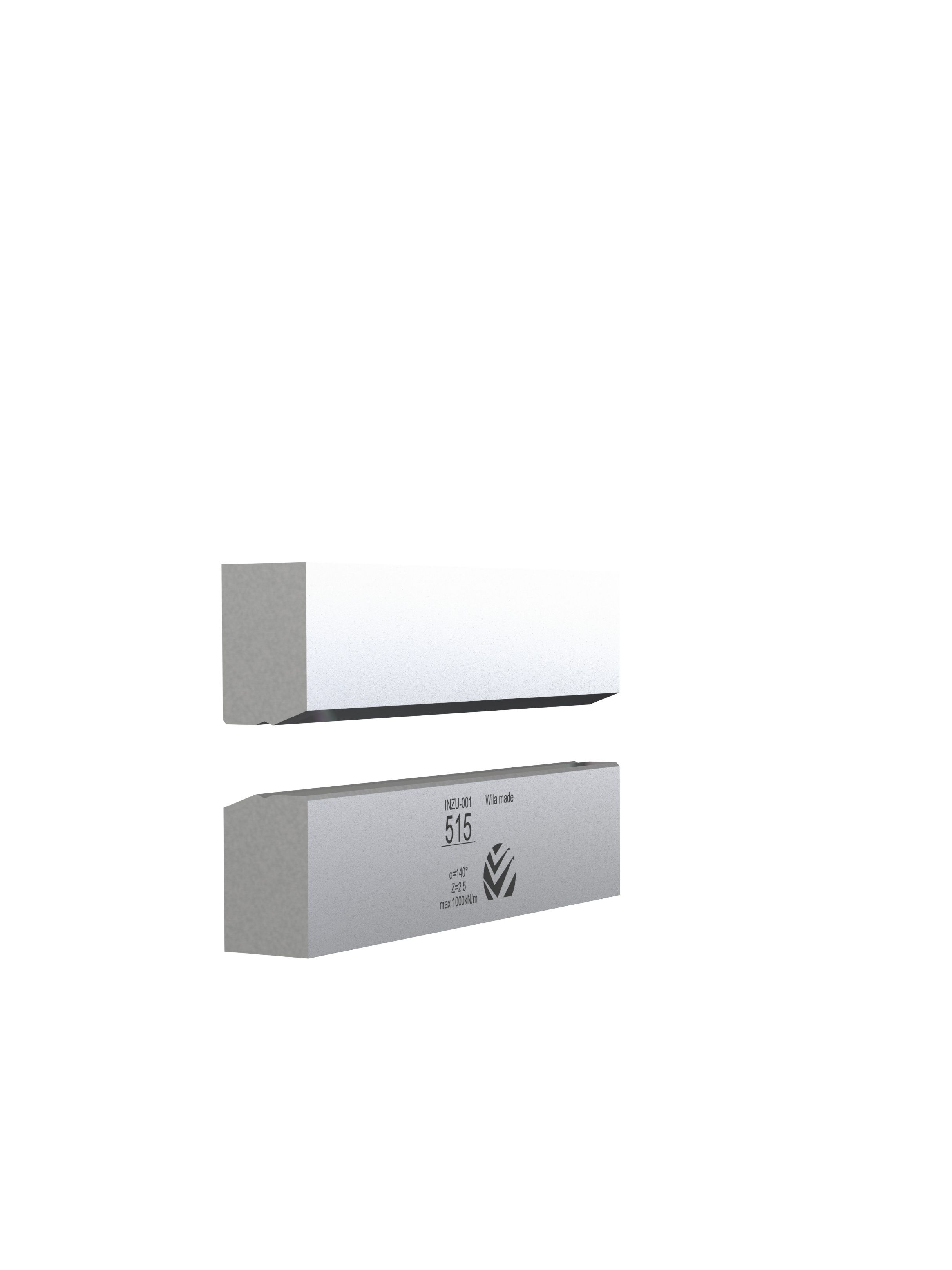

    INZU-001/Z2.5
    Orderable

    INZU-001/Z2.5

    Insert set of 2 parts
    Width W = 23mm, Z = 2.50mm/140°,
    Max. load = 100ton/m.

    INZU-002/Z10
    Orderable

    INZU-002/Z10

    Insert set of 2 parts
    Width W = 27mm, Z = 10mm/90°,
    Max. load = 100ton/m.

    INZU-002/Z13
    Orderable

    INZU-002/Z13

    Insert set of 2 parts
    Width W = 27mm, Z = 13mm/90°,
    Max. load = 100ton/m.

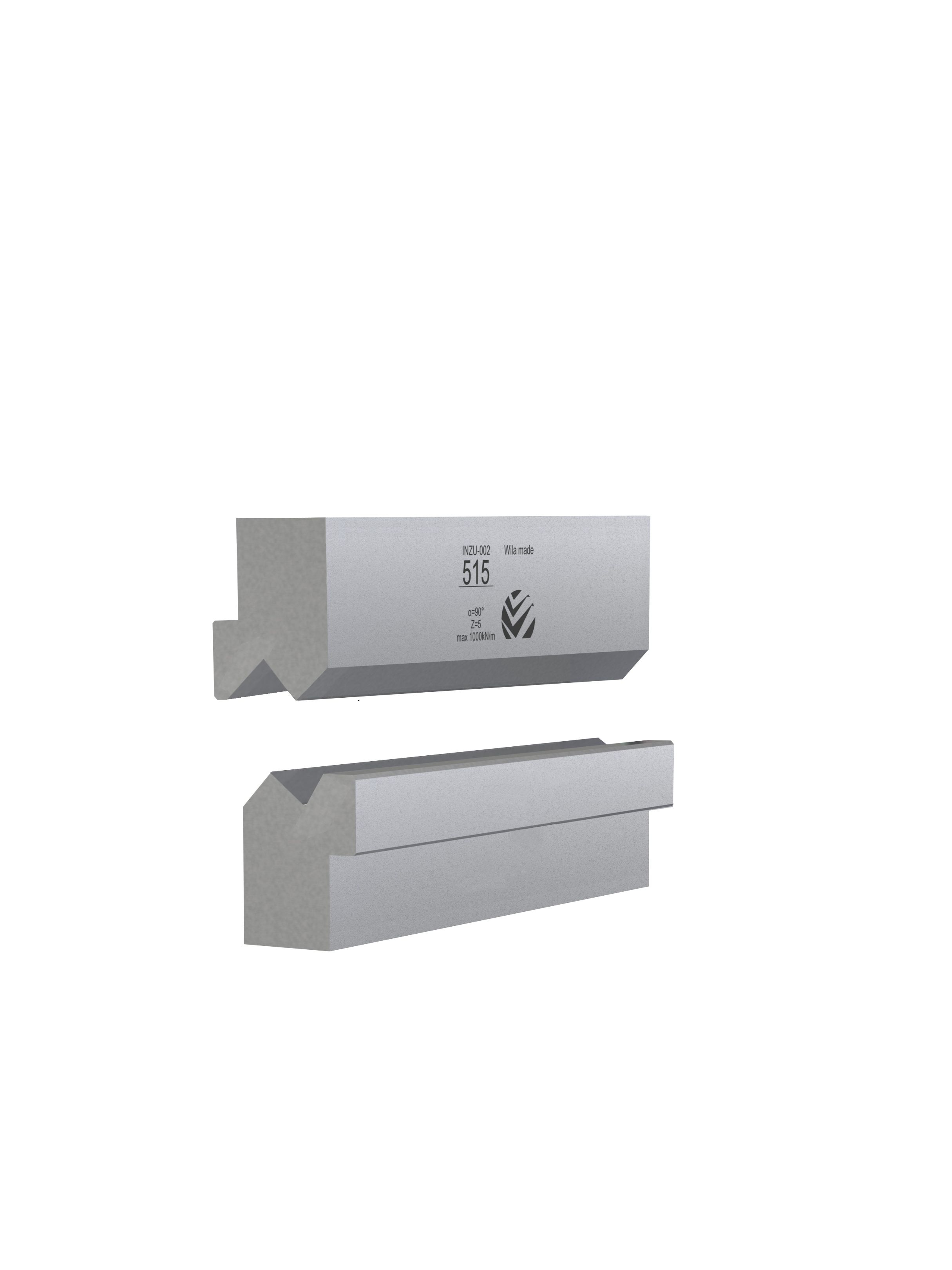

    INZU-002/Z15
    Orderable

    INZU-002/Z15

    Insert set of 2 parts
    Width W = 32mm, Z = 15mm/90°,
    Max. load = 100ton/m.

    INZU-003
    Orderable

    INZU-003

    Flattening insert
    Width W = 23mm,
    Max. load = 100ton/m.
