OZU-032

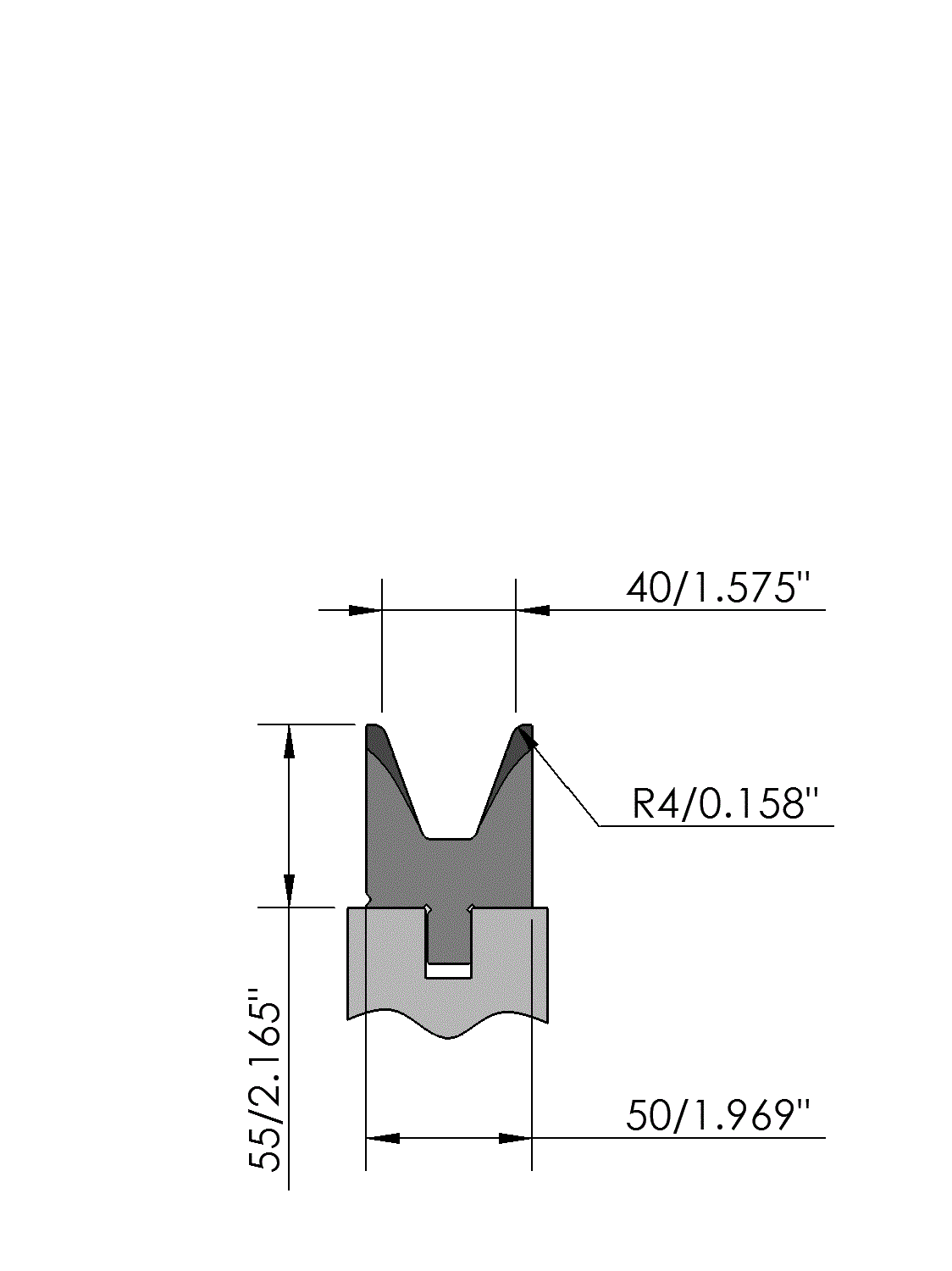

New Standard Premium Bottom Tool

Working height = 55mm
V-opening = 40mm/40°
Radius = 4mm
CNC-Deephardened® (≥ 4mm / 56-60HRC)
Max. load = 80ton/m (α = 90°)
Max. load = 80ton/m (α = 90°)

Entre en la tienda web de WILA


OZU-032/1 515mm		8.2kg / 18.1lbs
OZU-032/2 550mm (segmented)		8.7kg / 19.3lbs
OZU-032/3 200mm (segmented)		3.2kg / 7.0lbs
OZU-032/12 255mm		4.1kg / 8.9lbs
OZU-032 1x:20mm		0.3kg / 0.7lbs
OZU-032 1x:25mm		0.4kg / 0.9lbs

Descripción

New Standard Premium bottom tool Working height=55mm, V-opening=40mm/40°, Bending radius=4mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°), Max. load=80ton/m (α=90°).
