OZU-032

OZU-032

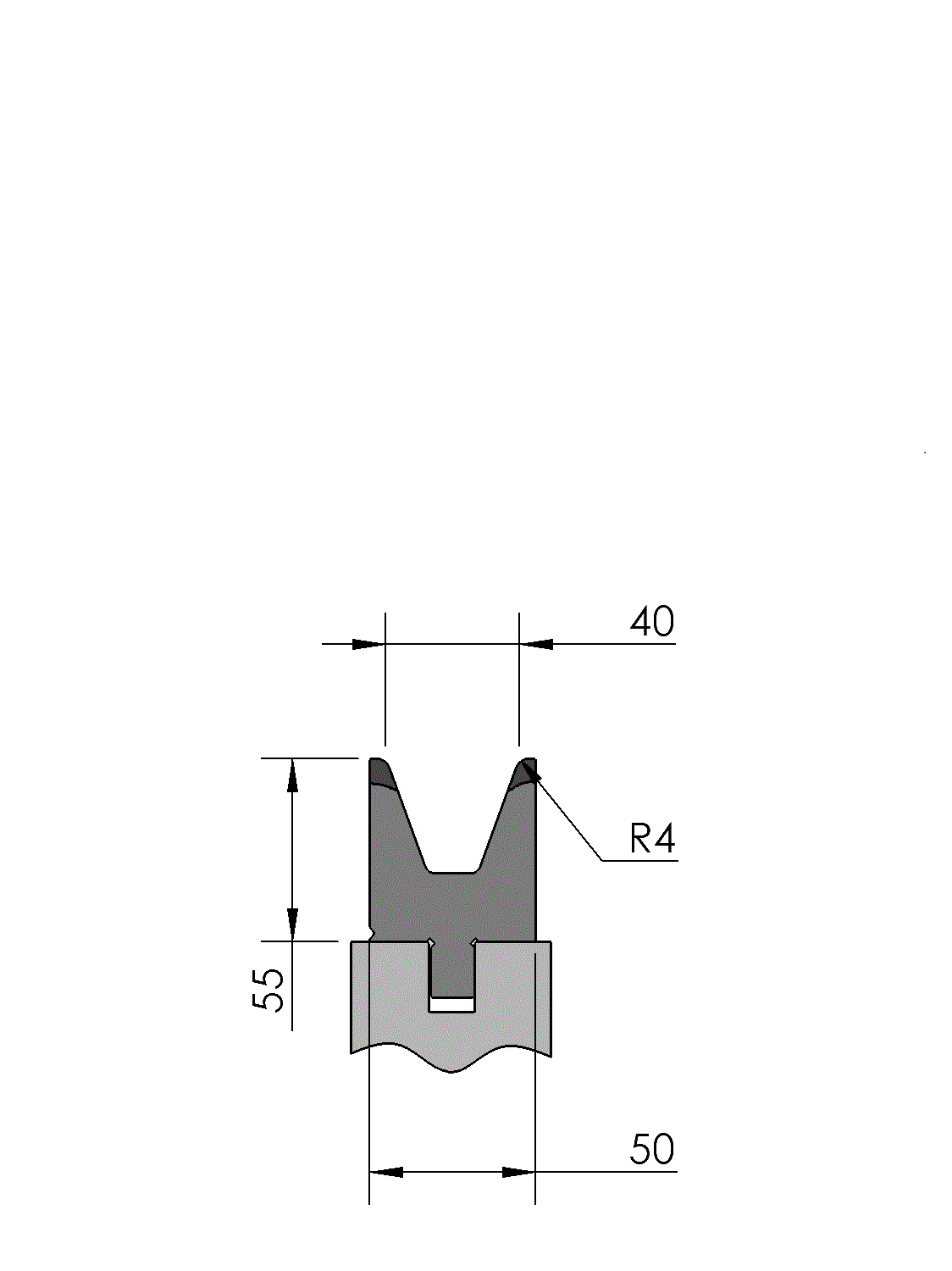

New Standard Premium Bottom Tool
  • Working height = 55mm
  • V-opening = 40mm/40°
  • Radius = 4mm
  • CNC-Deephardened® (≥ 4mm / 56-60HRC)
  • Max. Belastung = 80ton/m
OZU-032/1 515mm
276980
8.2kg
OZU-032/2 550mm (segmented)
276981
8.7kg
OZU-032/3 200mm (segmented)
276982
3.2kg
OZU-032/12 255mm
377704
4.1kg
OZU-032 1x:20mm
360451
0.3kg
OZU-032 1x:25mm
360452
0.4kg

Description

New Standard Premium bottom tool Working height=55mm, V-opening=40mm/40°, Bending radius=4mm, precision ground and CNC-Deephardened® (at least 4mm / 56-60HRc), Material=CR-MO
Max. load = 80ton/m.

Scan DM-code with your Smart Tooling App

Use the WILA Smart Tooling App to scan the DM-code for more information.
