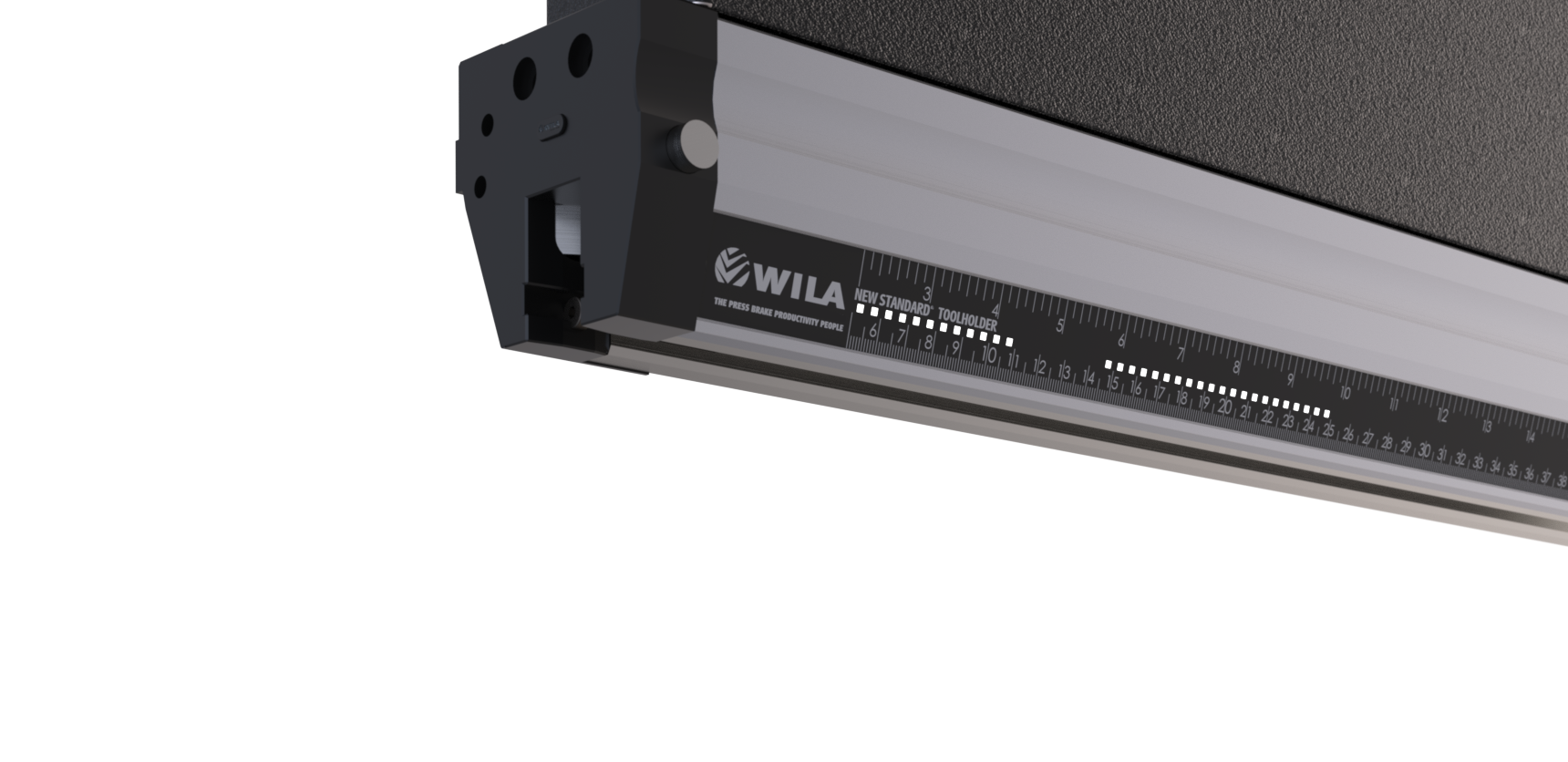

NSCL-II-HC/UPB

NSCL-II-HC/UPB

New Standard Premium Clamping
  • Clamping Type = Hydraulic
  • Adaption = UPB
  • Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)
  • Working height H = 80mm
  • Width W = 82mm
  • Max. load = 300ton/m

Description

New Standard Premium Clamping

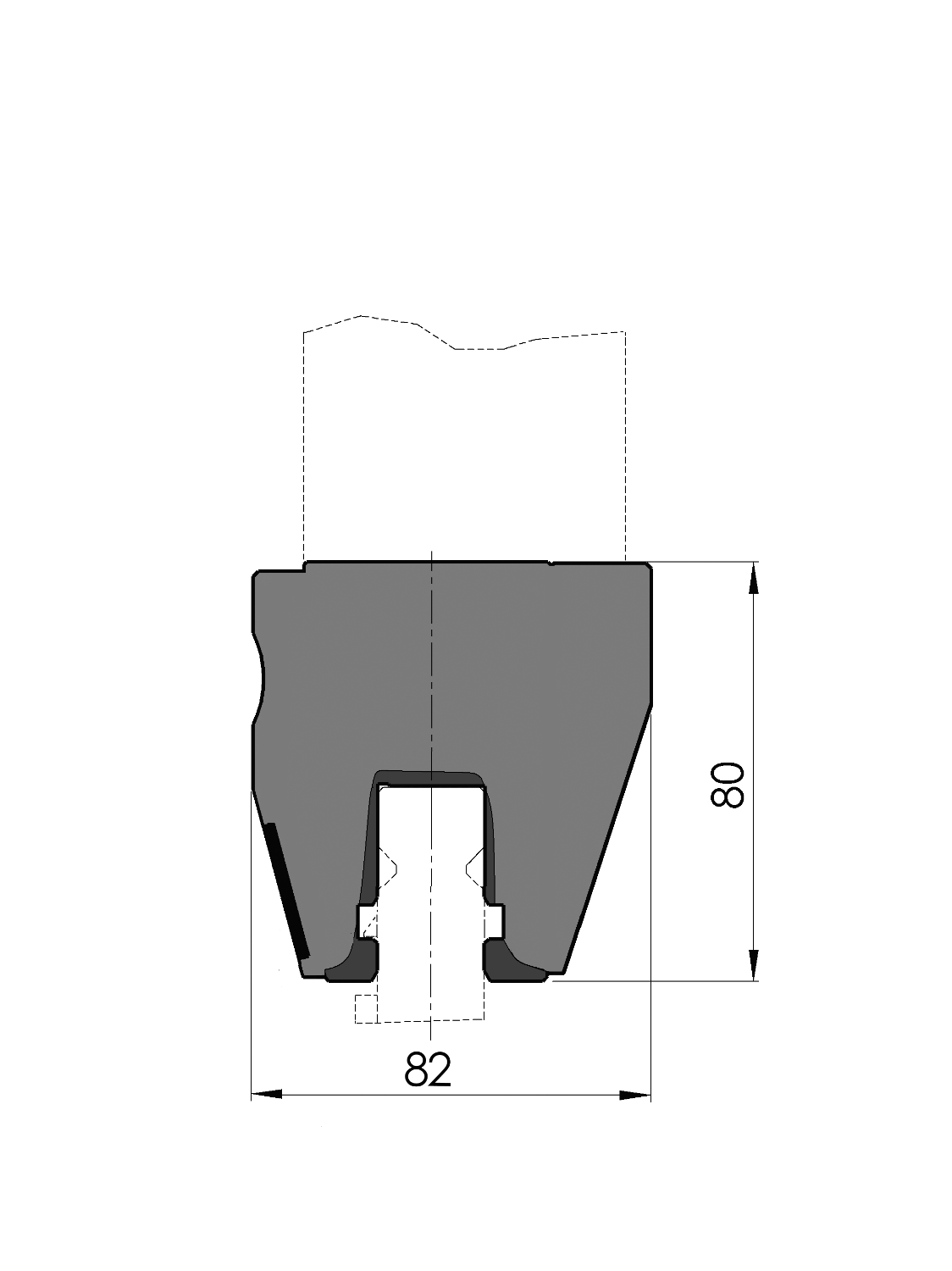

Working height=80mm, Width=82mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, hydraulic clamping (max. 50bar), oil supply ø10mm, left and right (top and rear), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), Weight=32kg/m, Max. load=300ton/m.
Delivery with coverstrip, and scale ("0" at the left).Delivery without hydraulic power pack.
