OZU-WRB-303

OZU-WRB-303

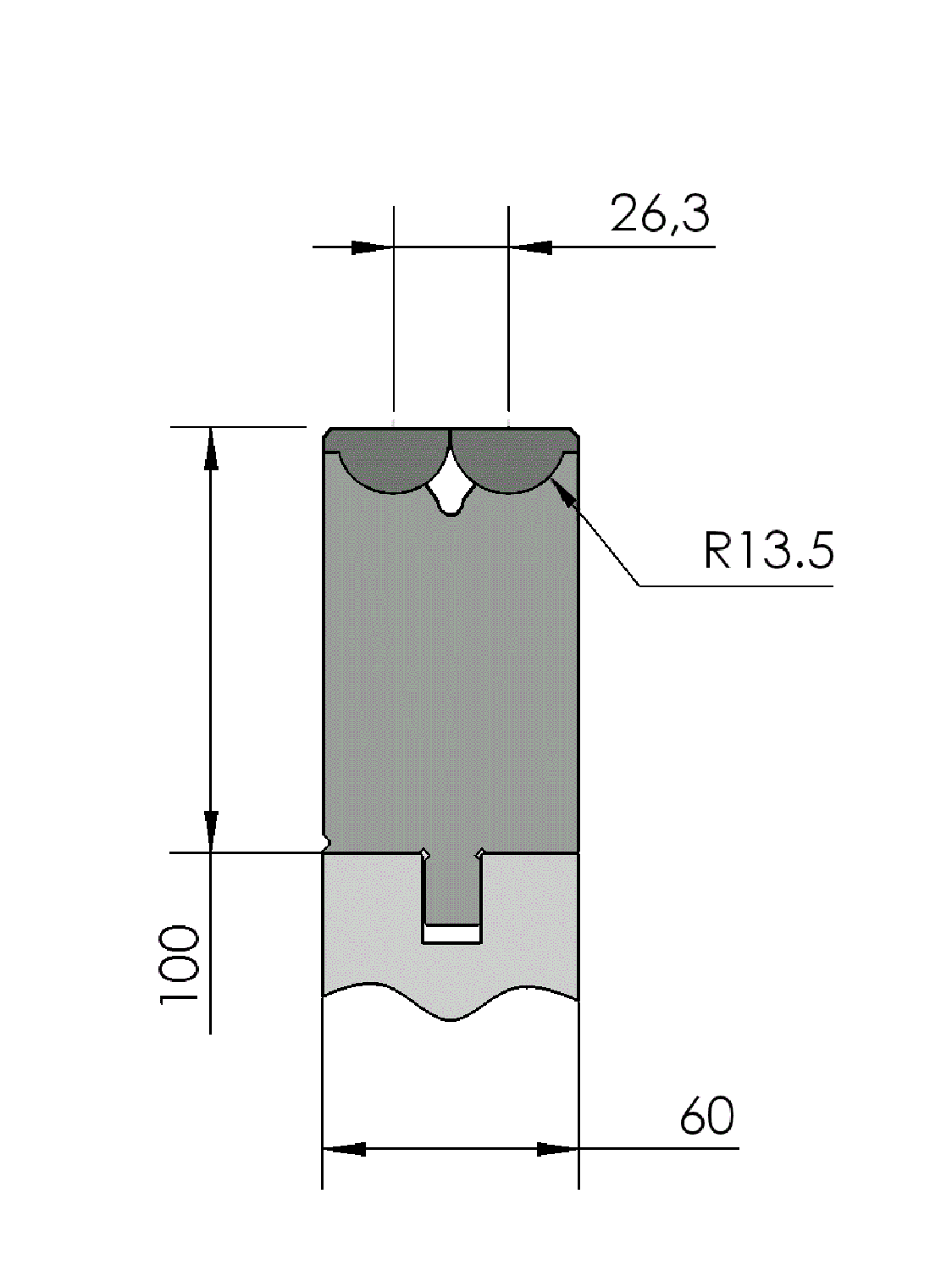

New Standard RotaBend
  • Working height = 100mm
  • Wing rotor opening = 26.3mm
  • Minimum bend angle = 60°
  • CNC-hardened
  • Max. load = 200ton/m (α = 90°)
  • Max. load = 200ton/m (α = 90°)
Type/length
Segments
Weight
OZU-WRB-303/1 515mm
382887
18.6kg
OZU-WRB-303/3 200mm (segmented)
383440
7.2kg
OZU-WRB-303/6 200mm
383441
7.2kg

Description

Easily bend short flanges and reduce part marking on the sheet / the product. New Standard RotaBend bottom tool Working height=100mm, Wing rotor opening=26.3mm, Minimum bend angle=60°, precision ground and CNC-hardened, Max. load=200ton/m (α=90°), Max. load=200ton/m (α=90°).
